Manufacturer: Furuno

Model Number: TZTBB DRS12a

MPN: MPU-002 DRS12a

Condition: Used

Additional Notes:

This system is a game-changer for those who appreciate Garmin’s chart plotting and fish-finding capabilities but also desire the enhanced radar performance of a Furuno 12KW radar. Enjoy the best of both worlds; a comprehensive marine navigation and fish-finding solution.

The Garmin 86xx and 92xx series chart plotters are designed with a USB port on the back, making them compatible with a touchscreen computer. We provide a TZTBB with a DRS12a radar, a package specifically designed to seamlessly integrate with these Garmin plotters. This will allow you to connect the Garmin Display to the TZTBB to view the TZTBB screen on the chartplotter and control it using the Garmin touchscreen.

Integrating your Garmin and Furuno systems is a straightforward process:

1. For screen viewing, connect the TZTBB to the HDMI IN port.
2. For control, connect the TZTBB to the USB port on the Garmin chart plotter using USB #2 (TZTBB).
3. Then, access the Video function on the Garmin chart plotter to view and control the TZTBB/DRS12a.

PLEASE NOTE: You can unlock the ARPA function of this radar using your Garmin NMEA2000 network, you just need to have a GPS antenna and a heading sensor on your existing system. Please refer to the Furuno MFD manual for further information on how to properly use ARPA.

What’s Included:

• TZTBB – comes with power and waterproof ethernet cable
• DRS12a – we had the gearbox professionally powder coated
• 4 Foot Array – was painted white by the previous. No “Furuno” decal

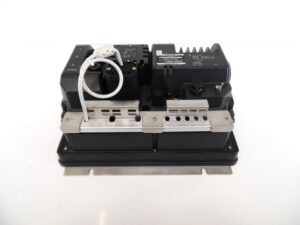

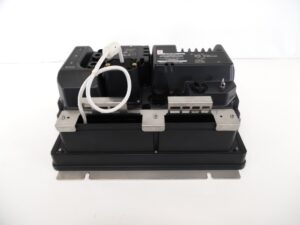

• PSU-012 – with power cable and jumper (already installed)
• Interconnect Cable – 45 feet
• PSD-002 – needed to power the TZTBB on and off. NO CHART CARD INCLUDED
• DVI to HDMI Cable – Connect to DVI-0 on TZTBB and to HDMI IN on Garmin Chartplotter
• MFD to USB cable – Connect to USB #2 on TZTBB to USB on Garmin Chartplotter
• 2 M NMEA2000 Drop
• Grey Garmin “T” connector

Compatible Parts:

Garmin GPSMAP 86xx and 92xx series chart plotters

Dimensions (L x W x H): 60 x 60 x 60 in, Weight: 125 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
