Manufacturer: Garmin

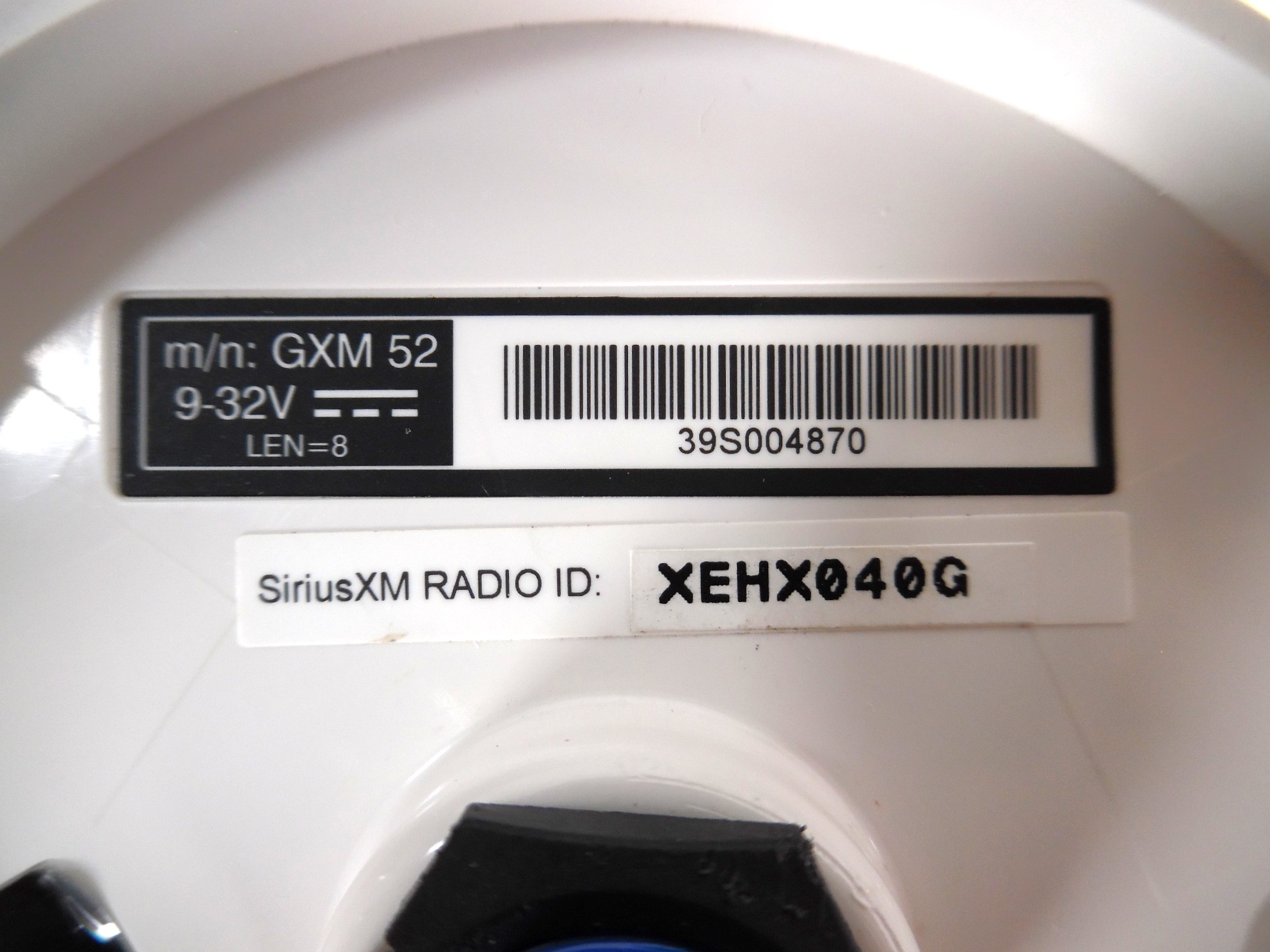

Model Number: GXM52

MPN: 010-01146-00

Condition: Used

Additional Notes: This GXM52 is fully tested and in good condition! Updated to the latest software Garmin has to offer.

The Garmin 010-11297-00 interconnect cable has been discontinued and is impossible to find. We have created a replacement cable, that in many ways, is better than the original:

Our cable uses a threaded 8 pin connector with permanently attached collar for a secure fit.
Our pins are gold plated and “barrel type” rather than the 2-blade type on the original which is more subject to wearing out causing poor connectivity
We have repurposed some new old stock yacht-grade double insulated RCA cables so sound quality should be better with these premium cables.
This cable bypasses the “2 cable system” Garmin uses, the 010-11298-00 audio cable is integrated into our assembly.

Most importantly, this is the only option we know of on the market to use the GXM51 and 52 XM weather receivers, which are still widely used today. If you do not need audio connectivity, simply wrap the RCA connectors in electrical tape or heat shrink and set aside.

Each cable has been individually tested and certified by a Max Marine Electronics technician.

Important Installation Notes:

EACH CABLE IS 2 METERS IN LENGTH. Length on NMEA portion can be extended by adding a drop cable of desired length, length on audio portion can be extended with RCA cable extender.

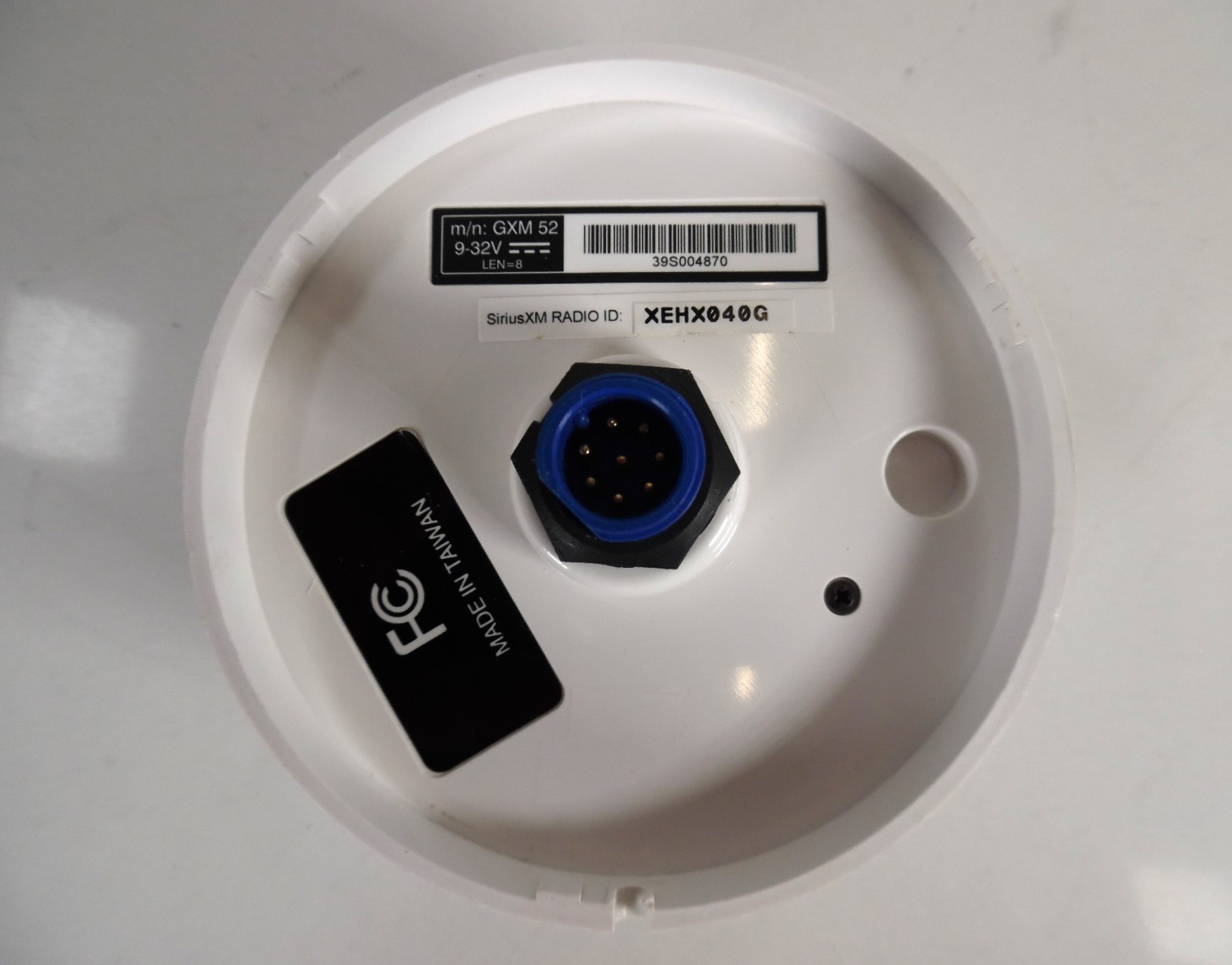

The connector portion on this cable is of a longer length than the original. Allow for about 4″ under the connector on the antenna for the connector and strain relief – recommended for pole mounting only as with a flush mounted antenna, you will have 4″ under the 8 pin connector on the antenna of straight connector/cable before you can bend it 90 degrees.
This cable assembly is thicker than the original. It will be difficult to fit in the portion of the pole mount that allows the cable to pass through the OUTSIDE of the threads, it is suggested that you use a straight pole mount, like a Shakespeare 4365 for proper fitment.

What’s Included:

• GXM52
• Max Marine Electronics Garmin GXM interconnect cable
• NEW Flush Mount
• NEW Under Deck Mount
• NEW Pole Mount

Compatible Parts: Select Garmin Devices.

Dimensions (L x W x H): 12 x 7 x 6 in, Weight: 2 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
