Manufacturer: JRC

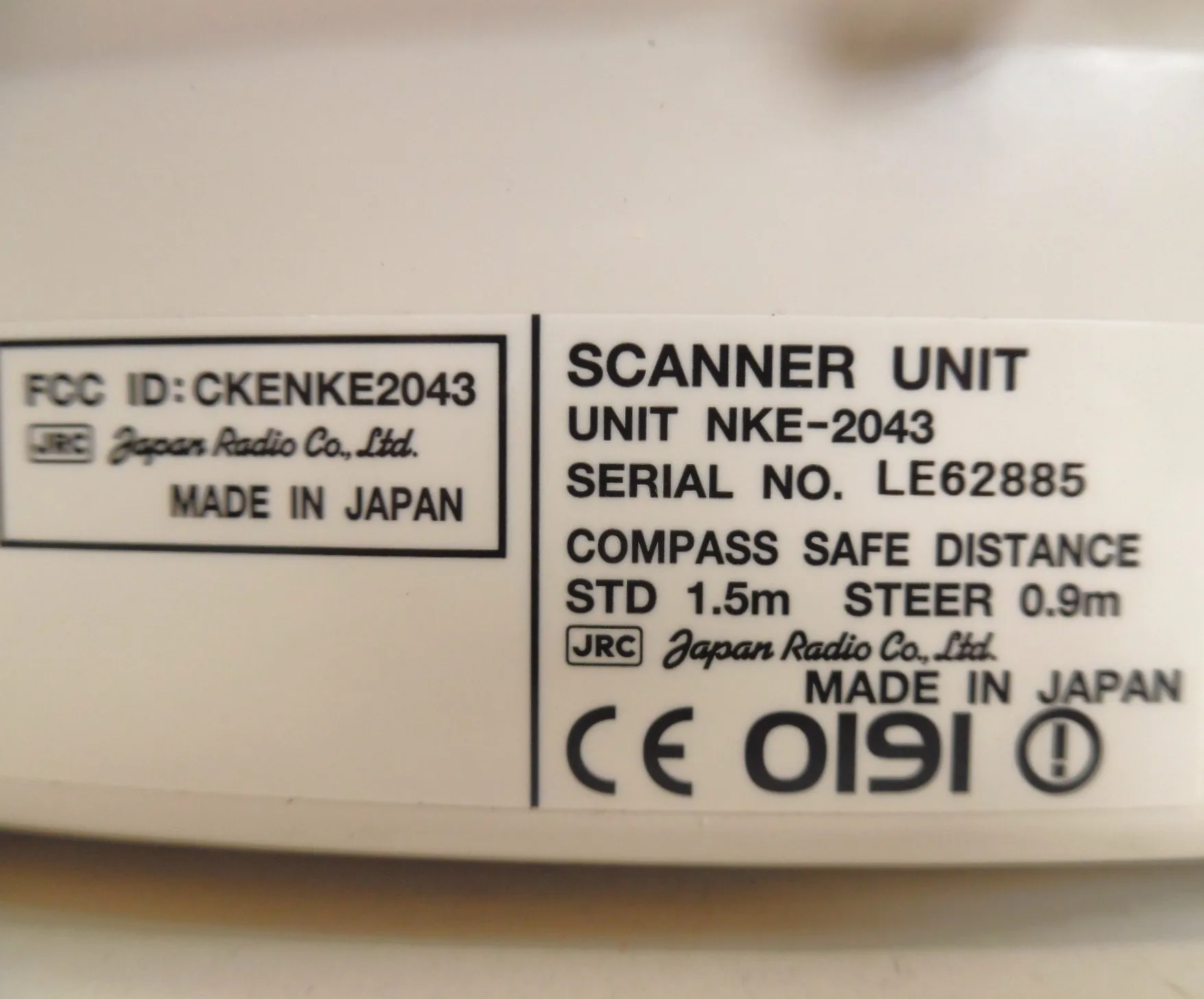

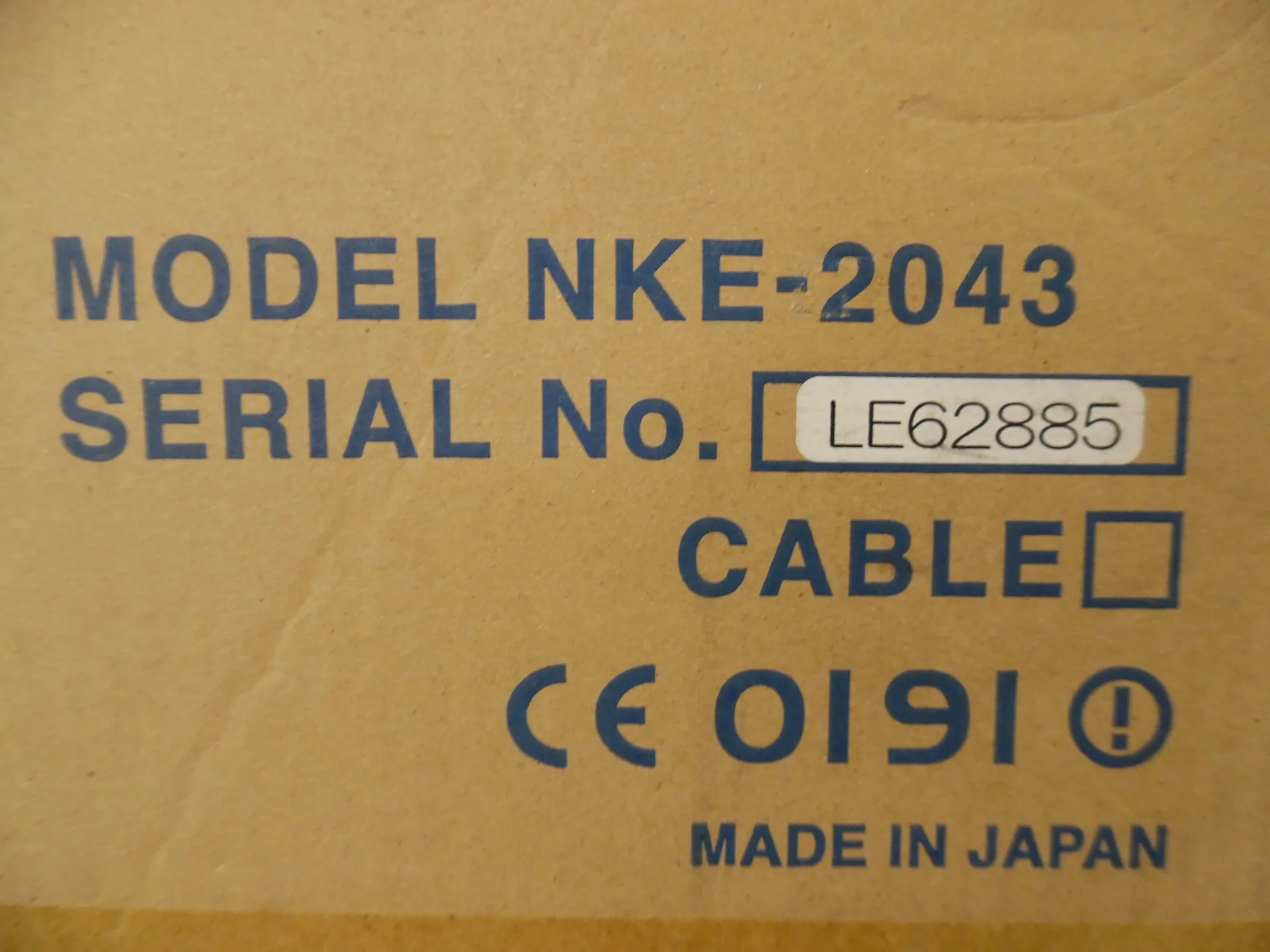

Model Number: NKE-2043 (CKENKE2043)

Condition: New other (see details)

Additional Notes:

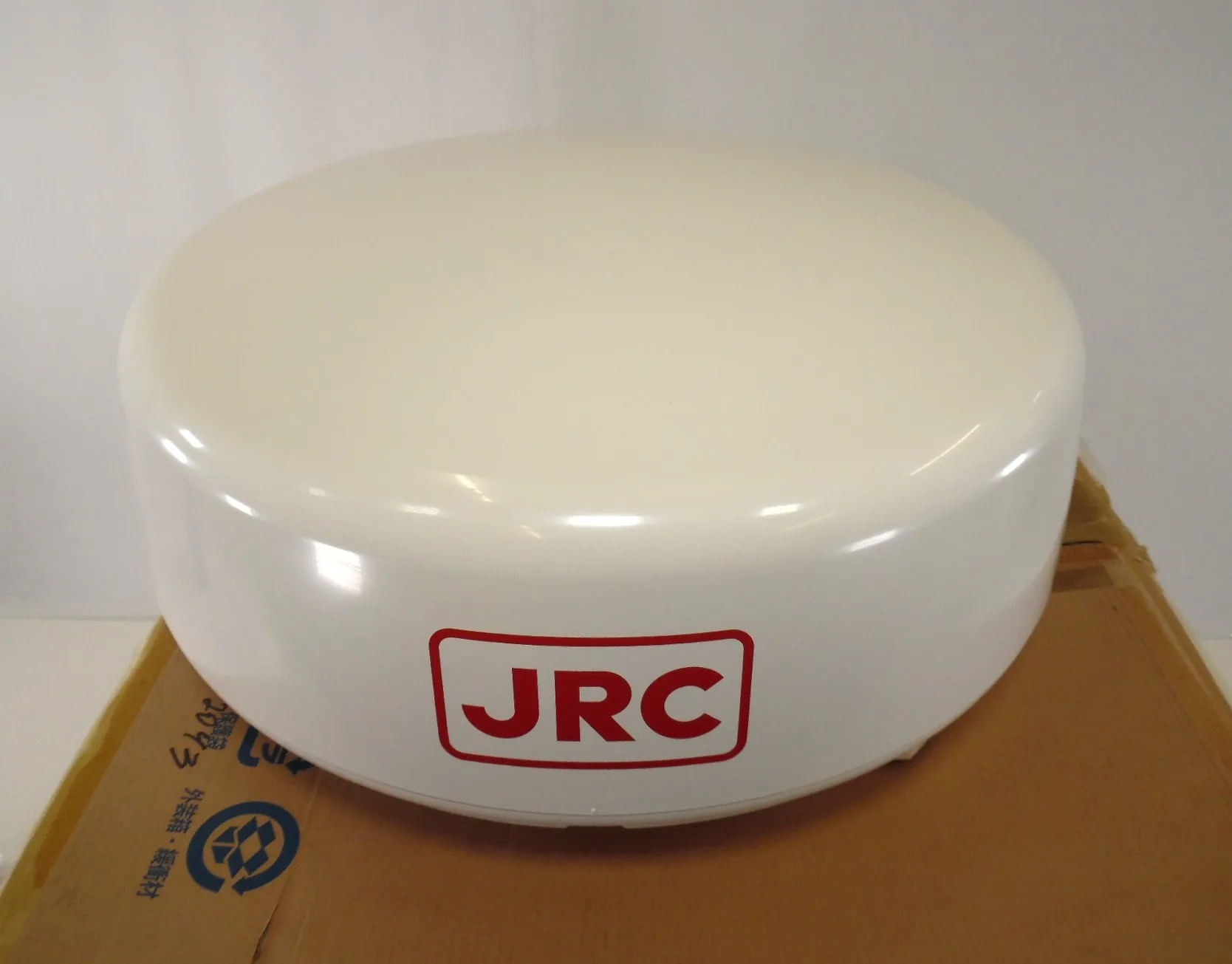

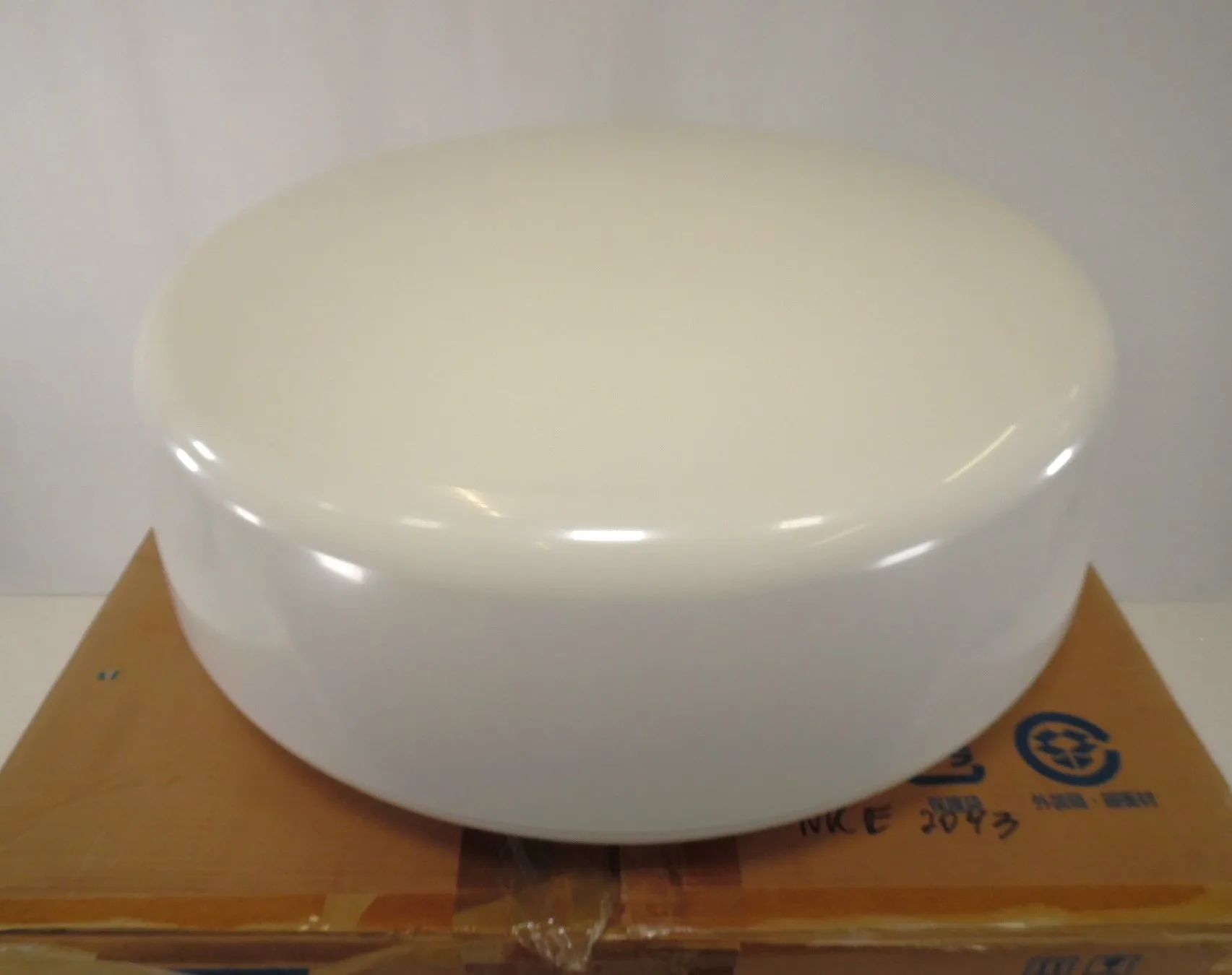

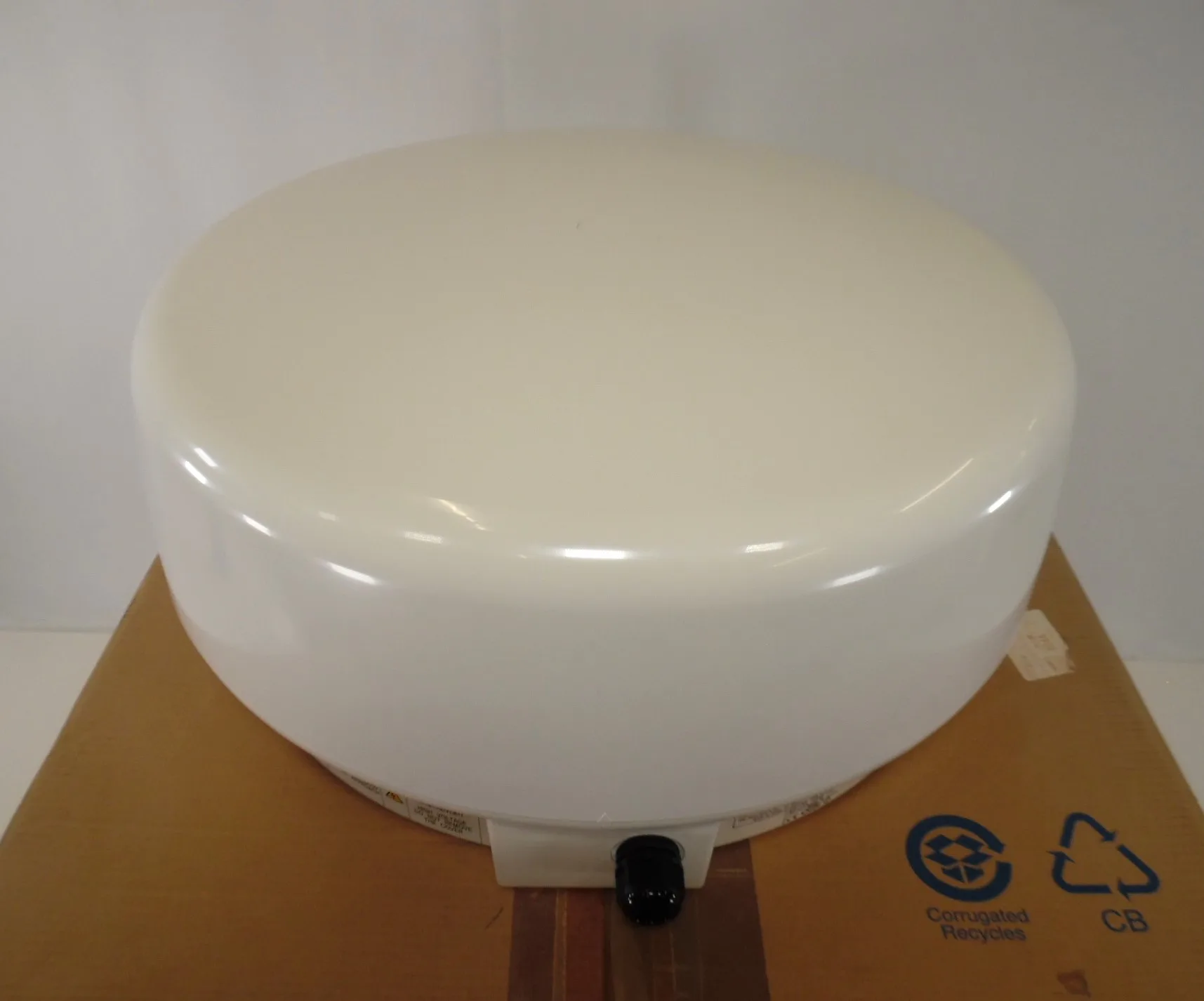

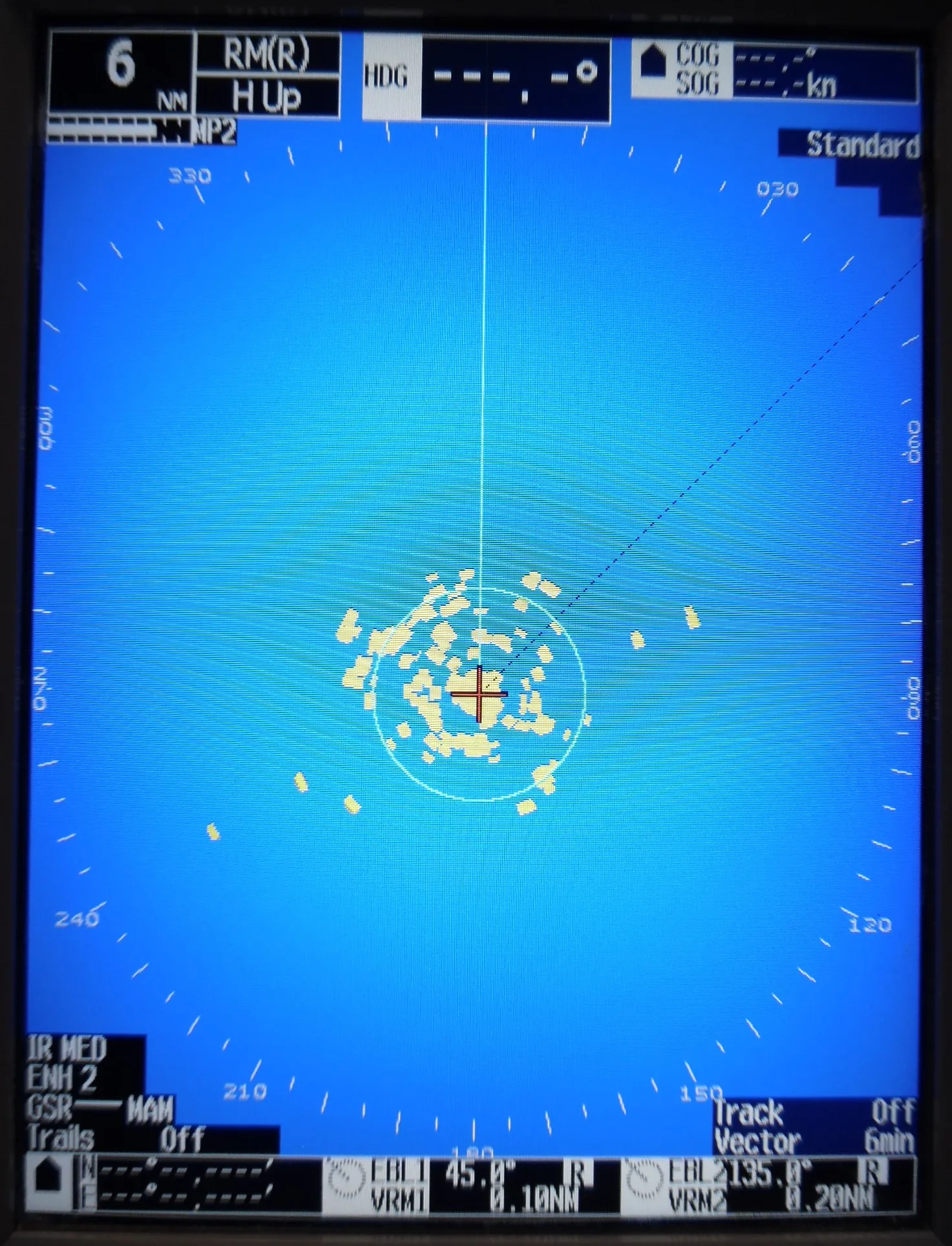

This listing is for a NEW OVERSTOCK JRC NKE-2043 (CKENKE-2043). We took the liberty to test the radar on a JMA-3300 display to check its functionality. This radar has 1 hour of run time do to testing.

Please Note: This listing will not come with a display or a radar cable. The radar cable was optional as JRC was offering various lengths of radar cables.

This very lightweight antenna, perfect for small offshore, inland, and fishing vessels operates at a low power rate, but with very stable results.
Technical Specifications of the Antenna:
– Output Power: 4kW
– Transmitting Frequency: X-band (9410±30MHz)
– 2ft scanner (620mm radome)
– Beam width: Horizontal 4°, Vertical 25°
– Rotation speed: 16, 20, 24, 27, 30, 36, 42, 48 rpm
– Pulse width/freq. repetition: 0.08μs/4000Hz, 0.08μs/2250Hz, 0.13μs/1700Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz, 1.0μs/650Hz
– Max. Range: 48NM
– Range scales: 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48 NM
– Adding range scale: 1, 2, 4, 8, 16, and 32＊1 NM

What’s Included:

• NEW NKE-2043 (CKENKE-2043)
• NEW Mounting Hardware

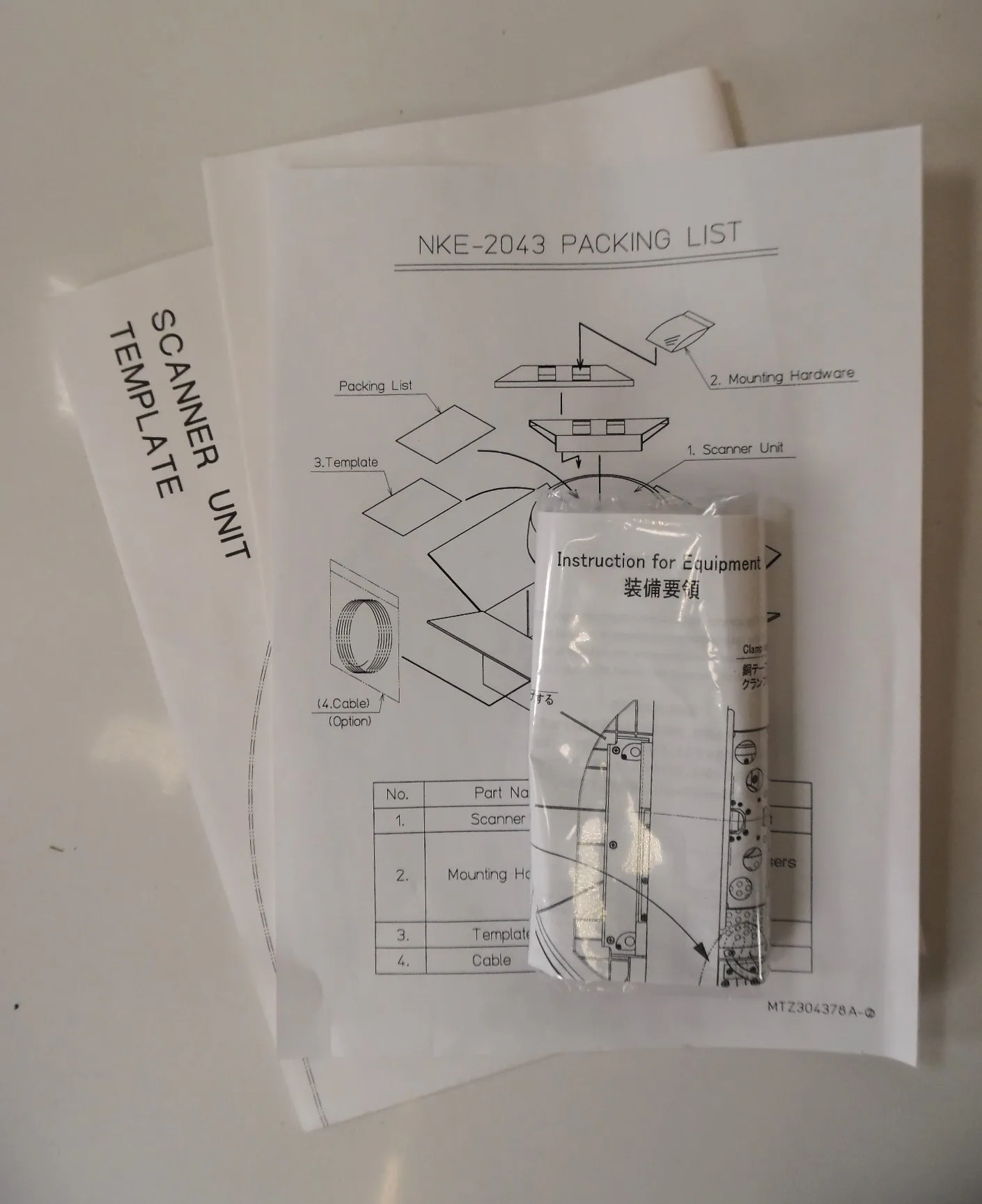

• Documents

Compatible Parts:
Displays:
JMA-3300
JMA-5200

Dimensions (L x W x H): 29 x 29 x 16 in, Weight: 32 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
