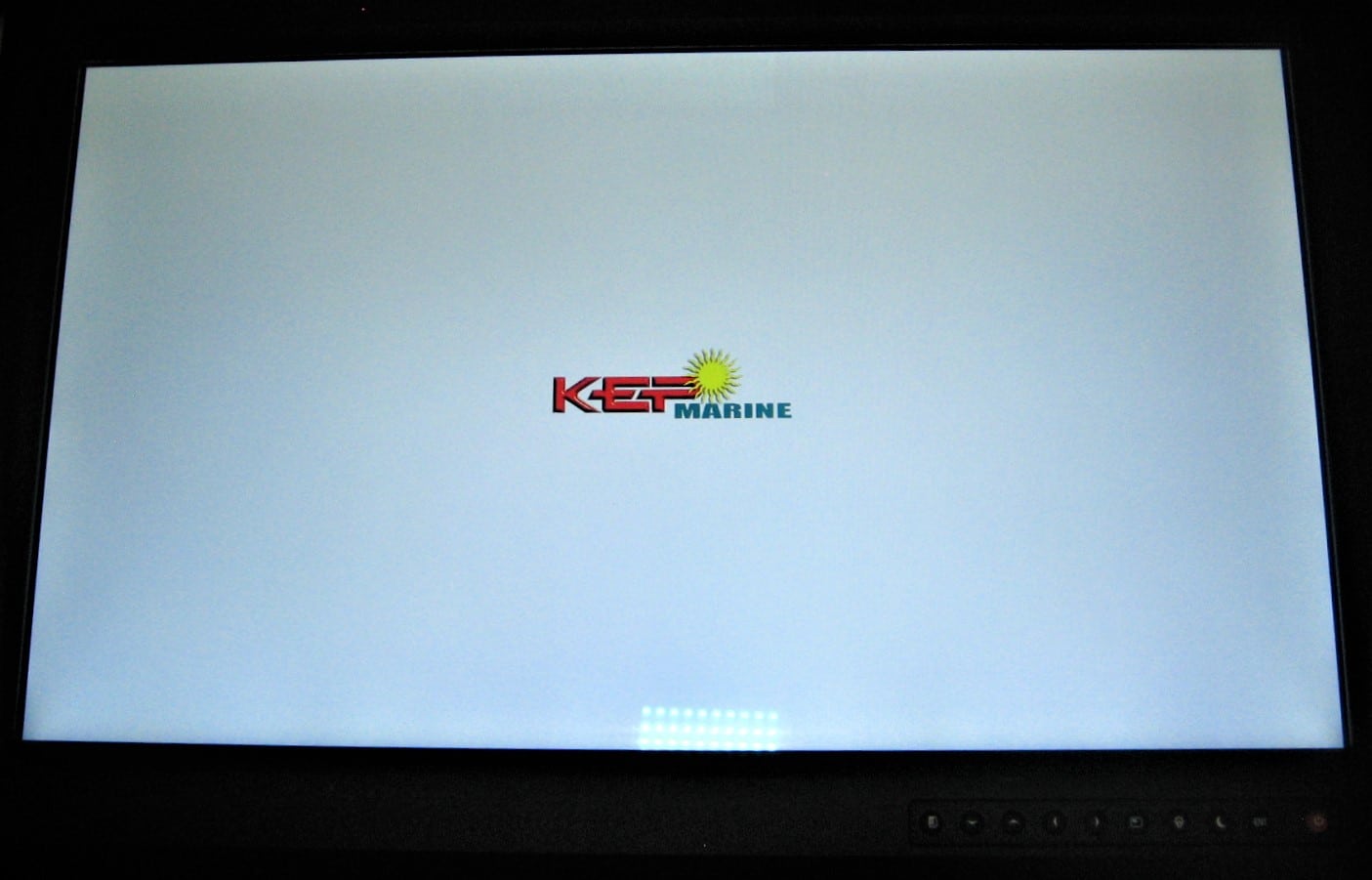

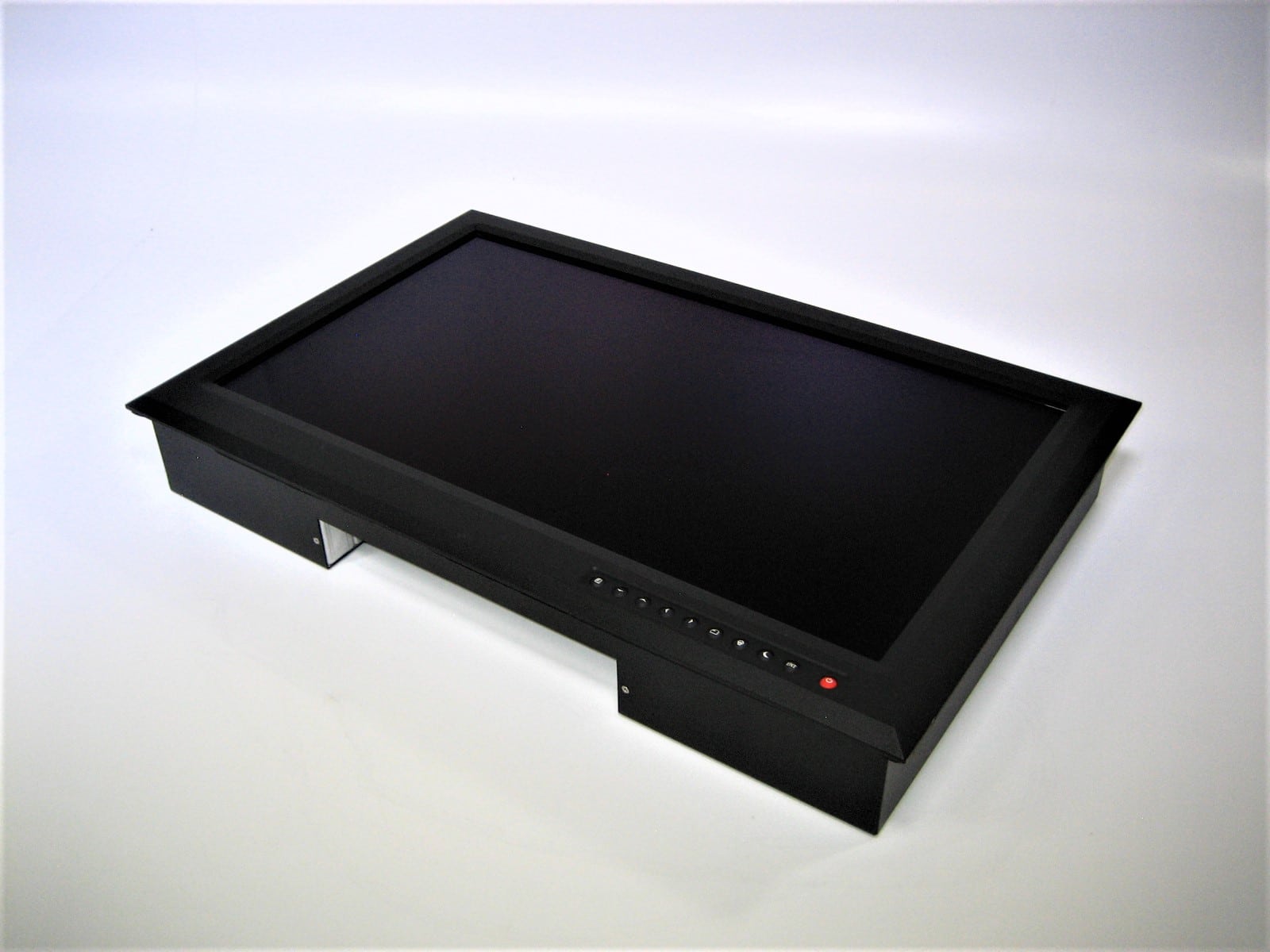

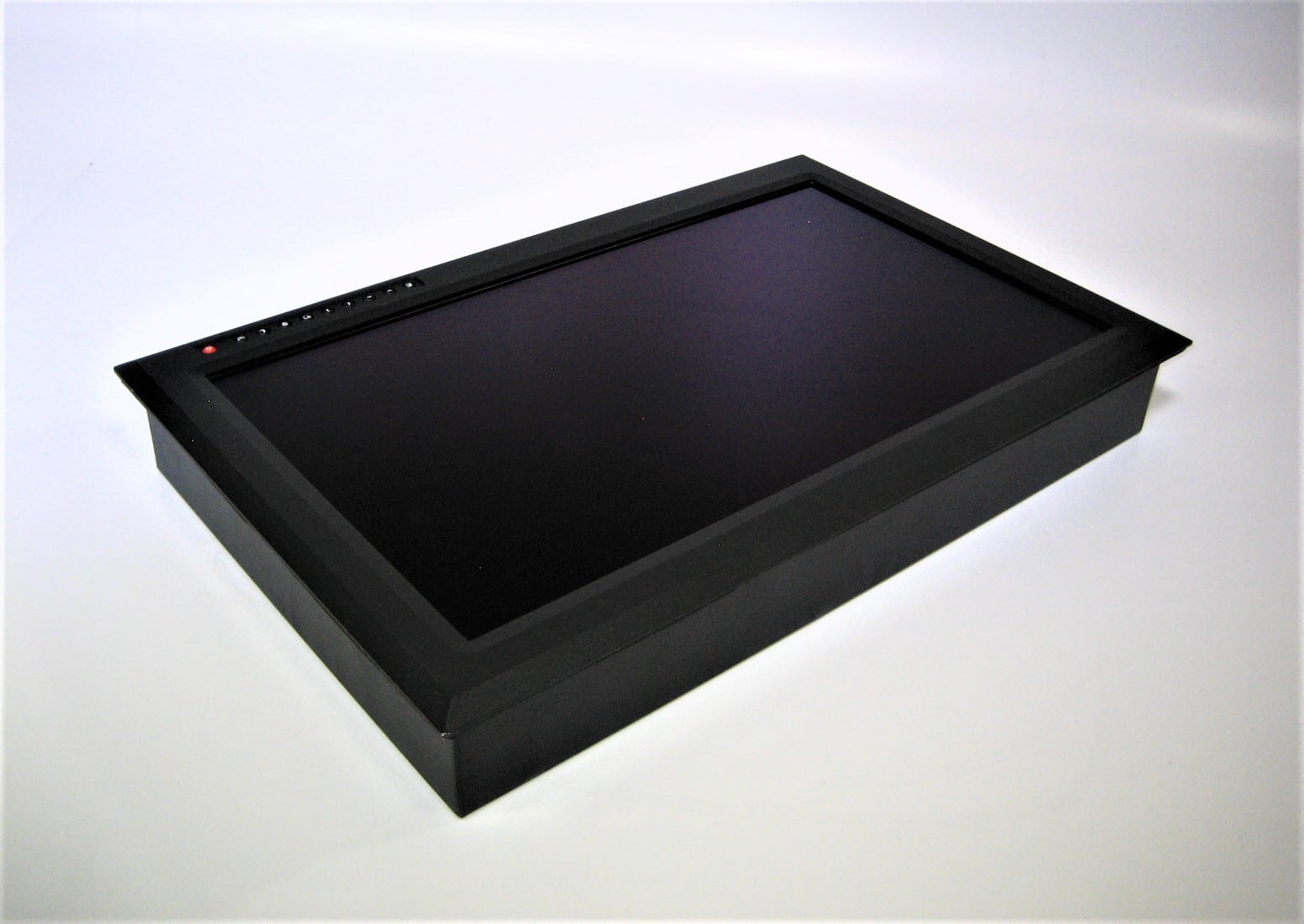

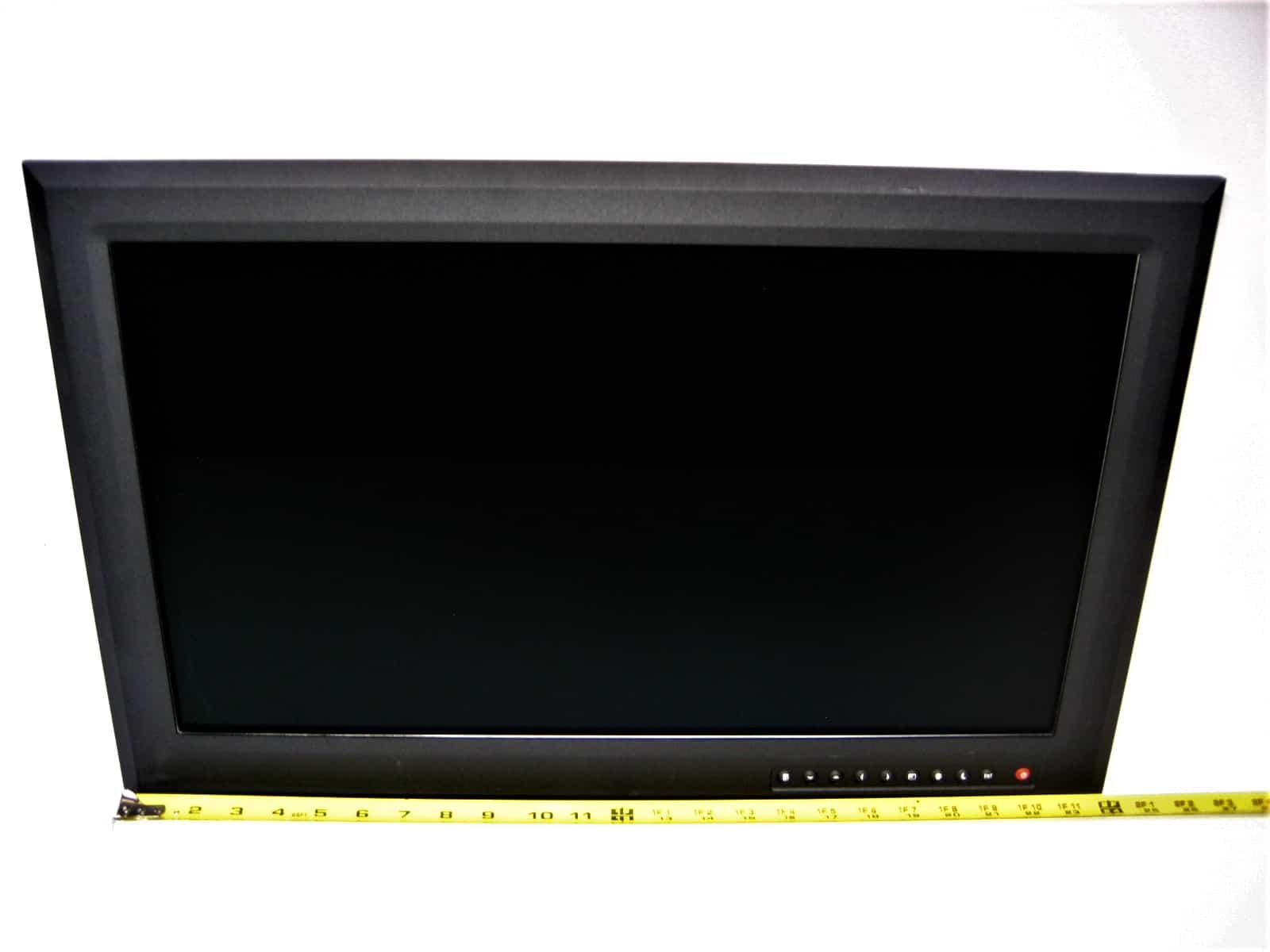

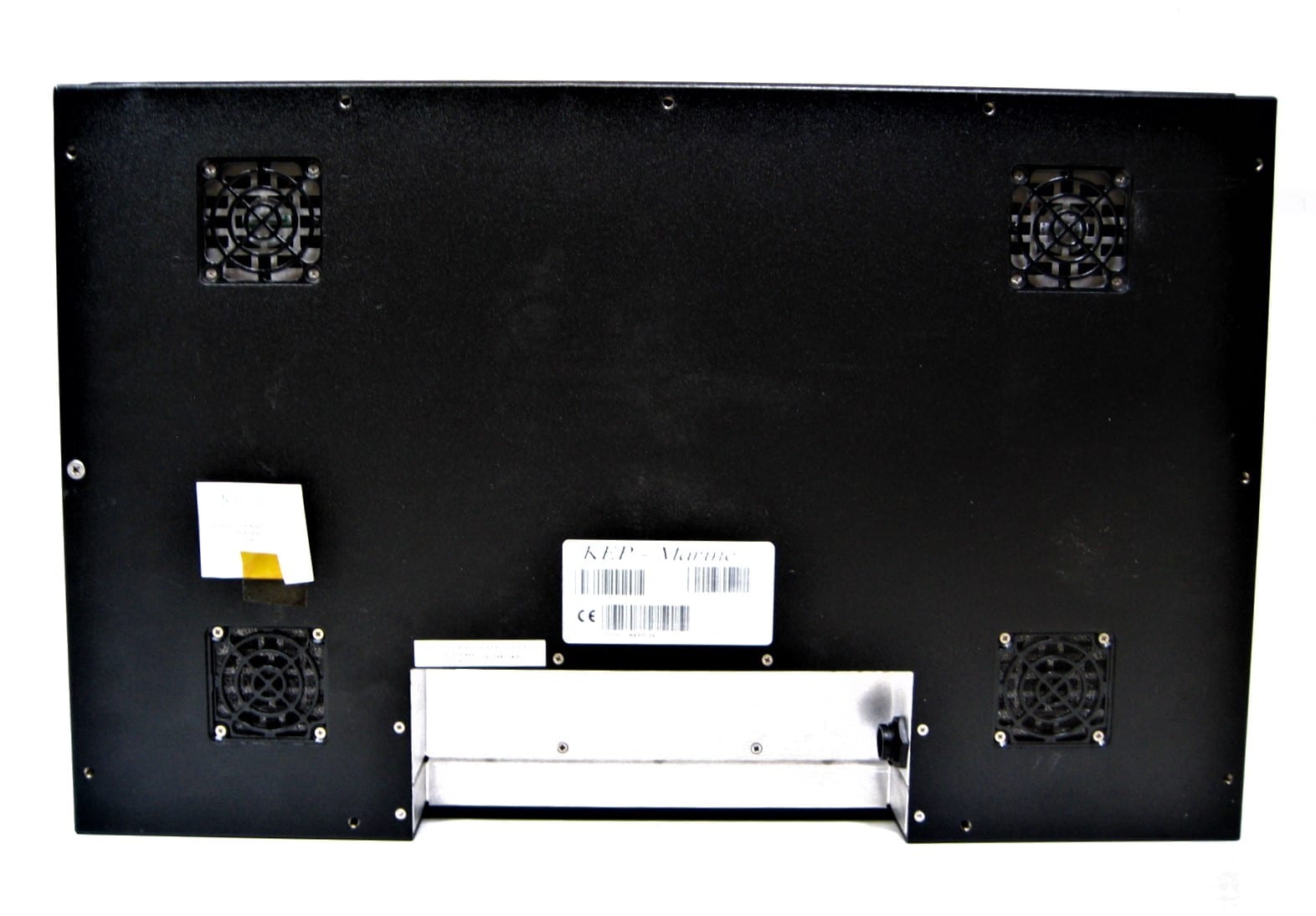

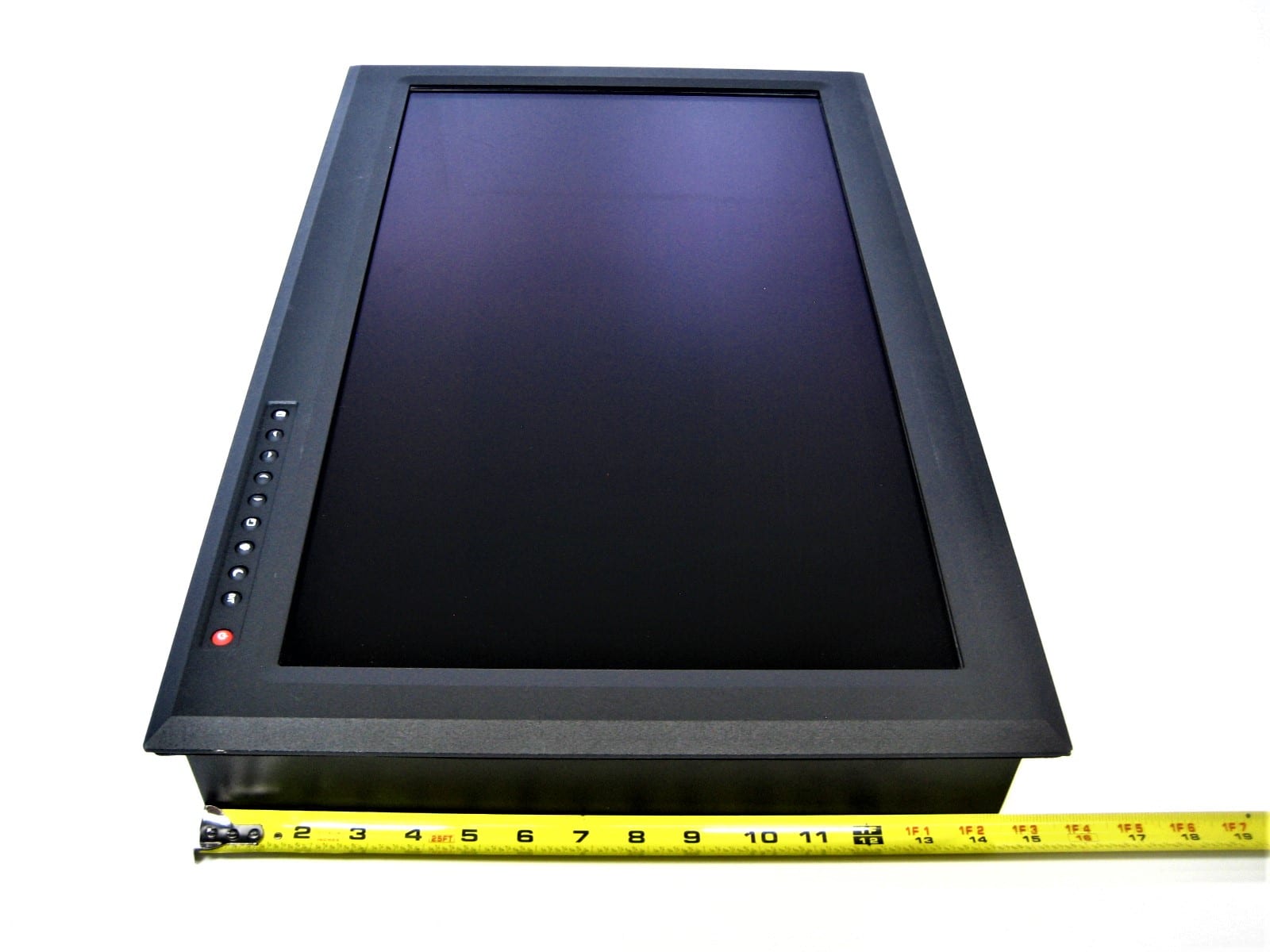

We recently acquired the inventory from a Marine electronics installer. This is a used KEP KEPM-21-10 Sunlight Viewable monitor in great cosmetic condition. This display is fully functional and each video input was tested here at our shop.

*Please note, this display comes with a 1′ (foot) power cable. No other cables, manual, or mounting hardware is included.

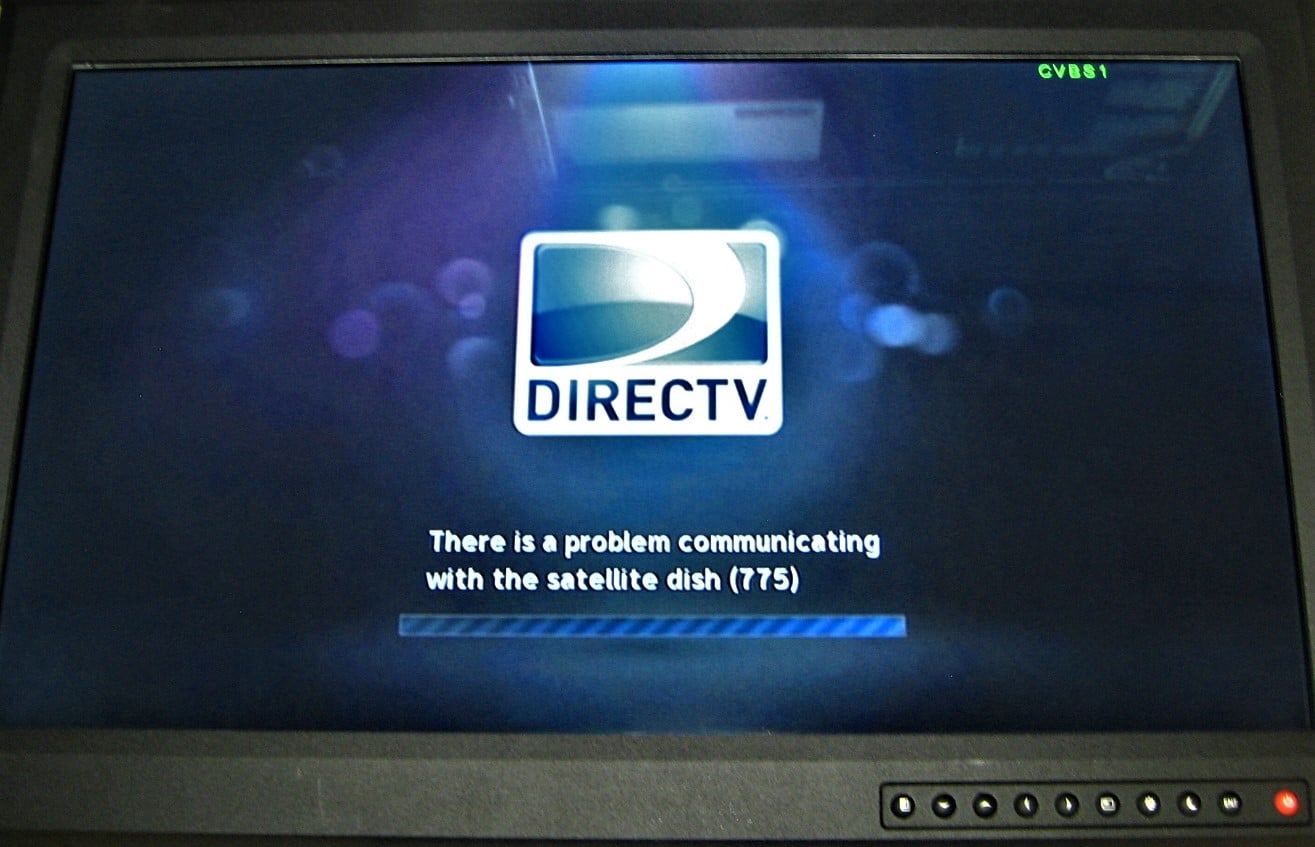

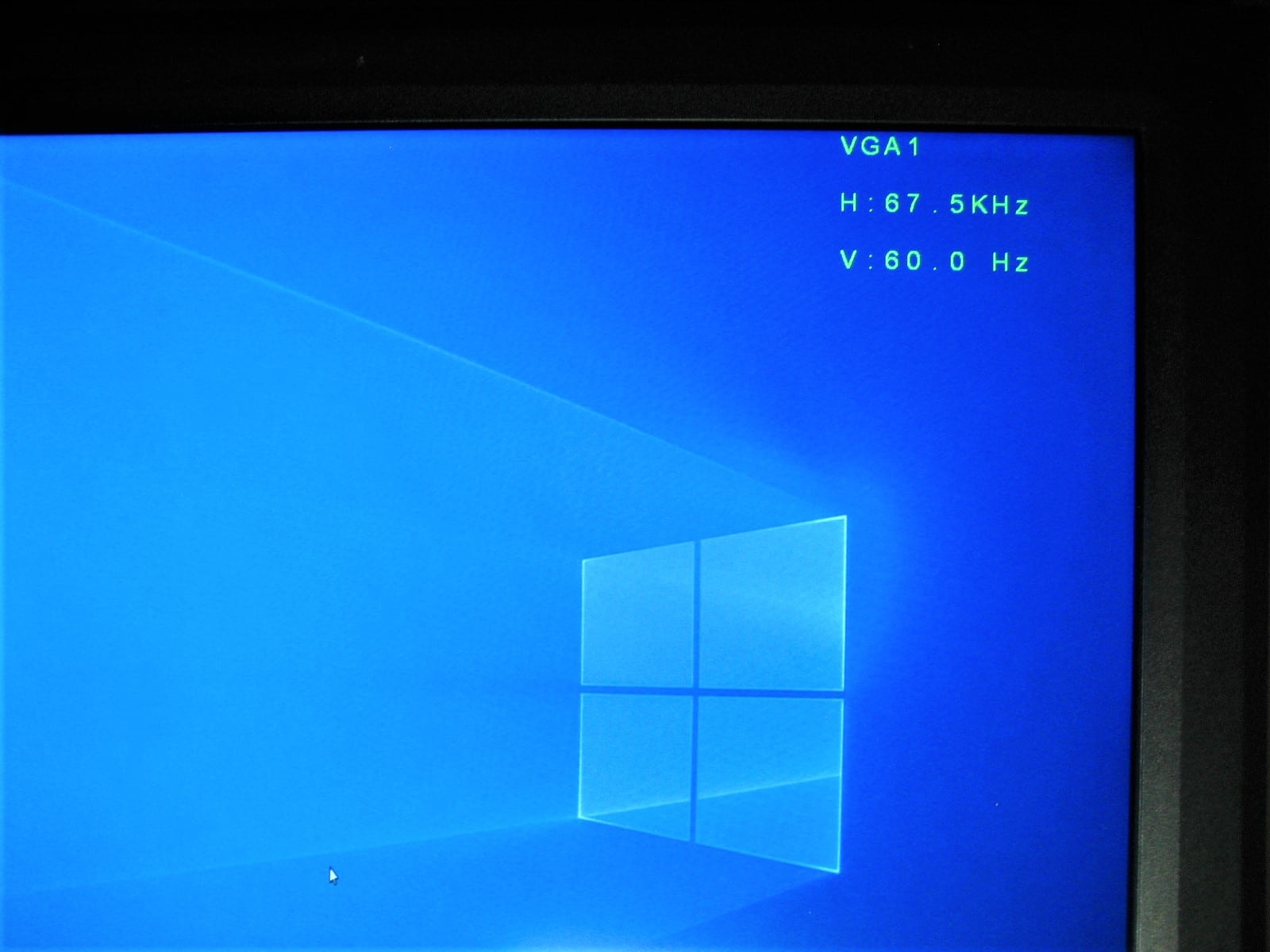

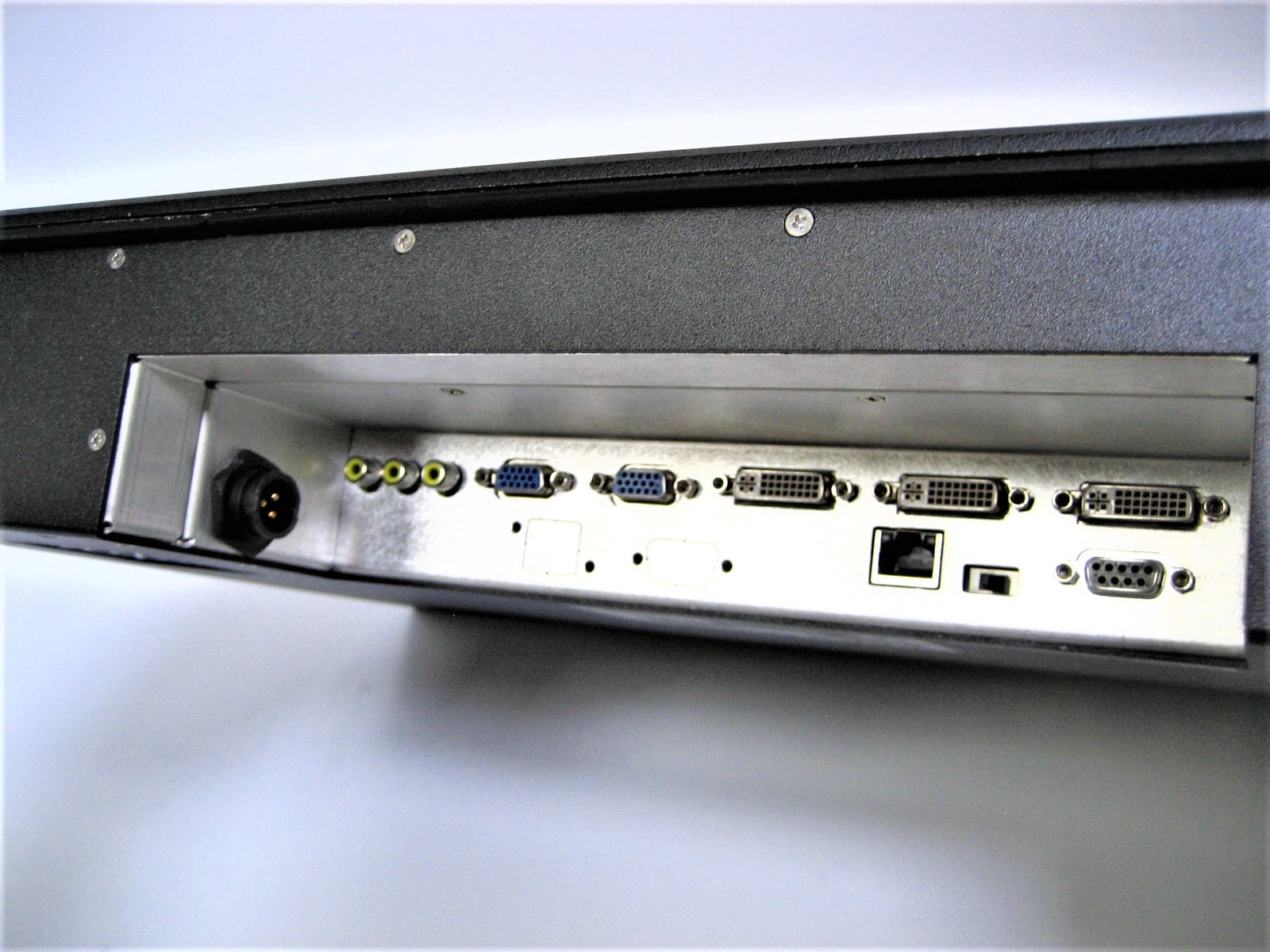

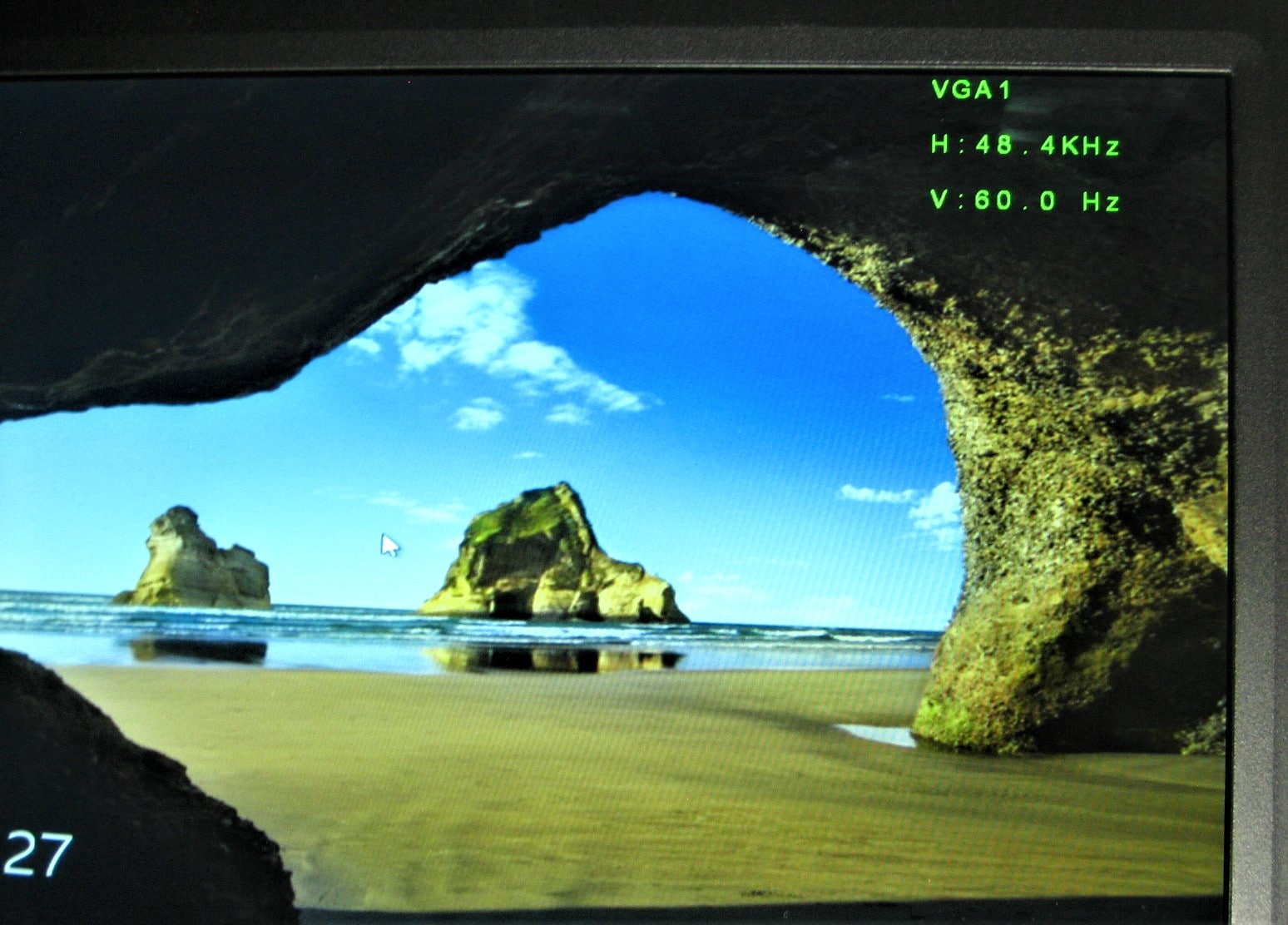

*All video and ethernet connections are functioning properly as we tested the DVI, DGA, and CVBS Video in/outputs (see photos).

Below are more details:

This AYDIN MARINE / KEP Marine’s In-Sight display, KM, is designed for the marine industry. These rugged displays deliver crisp text, fast response, and optimized viewing angles under any outdoor or indoor lighting conditions with or without the touch screen.

In-Sight’s advanced LCD contrast and brightness enhancements make the entire screen readable – even in direct sunlight. As the sunlight becomes more intense contrast and screen brightness increase to improve the viewer’s comfort and confidence.

Features

Sunlight Readable
Wide-format
Dimmable to black
High brightness, 700nit
Video and VGA inputs

Specifications

Parameter Value
LCD Display 24″ TFT Active Matrix Panel
Brightness 700nit
Max. Resolution 1900×1200 Wide
Contrast (800:1)
View Angle Wide viewing angle
Display Colors 16.7M
Operating Temp (-5 to 55°C)
Non-Operating Temp (-20 to 70°C)
Standard Inputs 3-VGA’s (RGB Analog 0.7V Peak to Peak) UXGA, 2-DVI’s SXGA
Standard Video Inputs 3-Composites, 1-S-Video
Color KEP Gray
Input Power 12/24Vdc universal input
Dimming Wide dimming range to Black
Red Mode YES
Picture-n-Picture Yes three stages
Front Window AR hard-coated glass
Bezel & Rear Case Marine aluminum UV-protected powder coating
Enclosure Nema4/IP66 from front
EN60945 Yes
Communications YES RS232 or Ethernet
Controls Front Mount
Bezel Dimensions, Cutout Dimensions A:23.609″, B:16.44″, C:22.855″, D:15.687″, E:4.18″
Install Depth 3.682”
Weight 19.84 lbs
Humidity 95%
FCC, CE, IC Approved Yes
WEEE & ROHS Yes
DDC Compliant Yes
Auto Video Detection Yes
Auto Video Scaling Yes

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
