We recently acquired a lot of parts from a marine distributor reducing excess inventory.

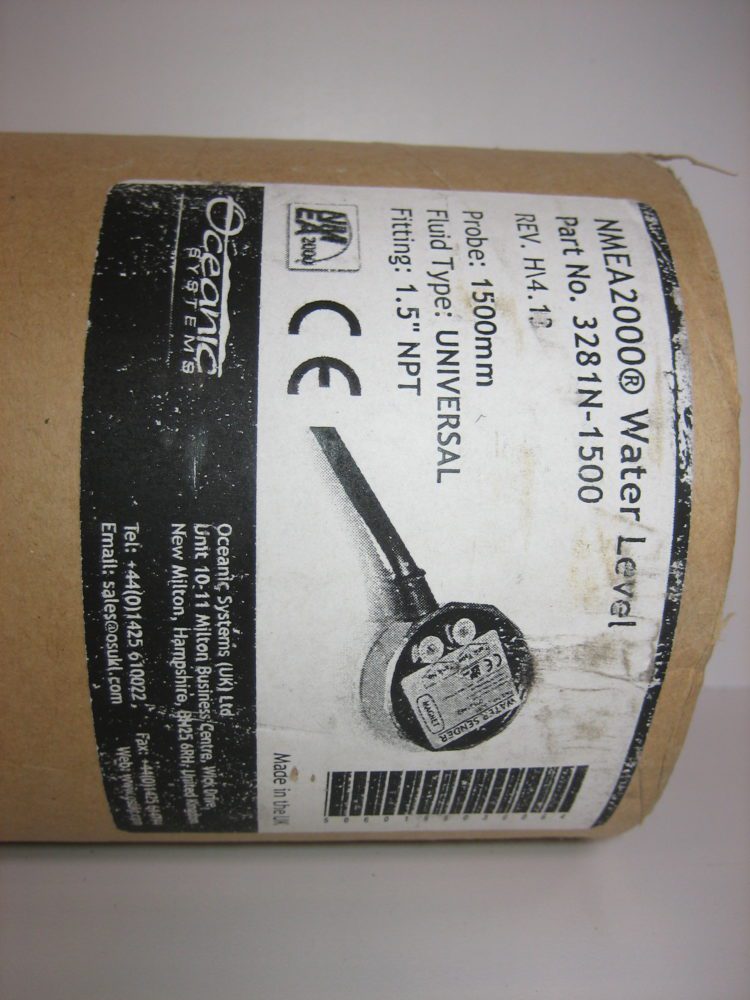

New in box – we have inspected each item for completeness prior to listing. PLEASE NOTE:  3281N-1500 corresponds to the 1500mm length and these have been individually inspected and found to be that part.

Please read the below carefully to be clear on what you are purchasing:

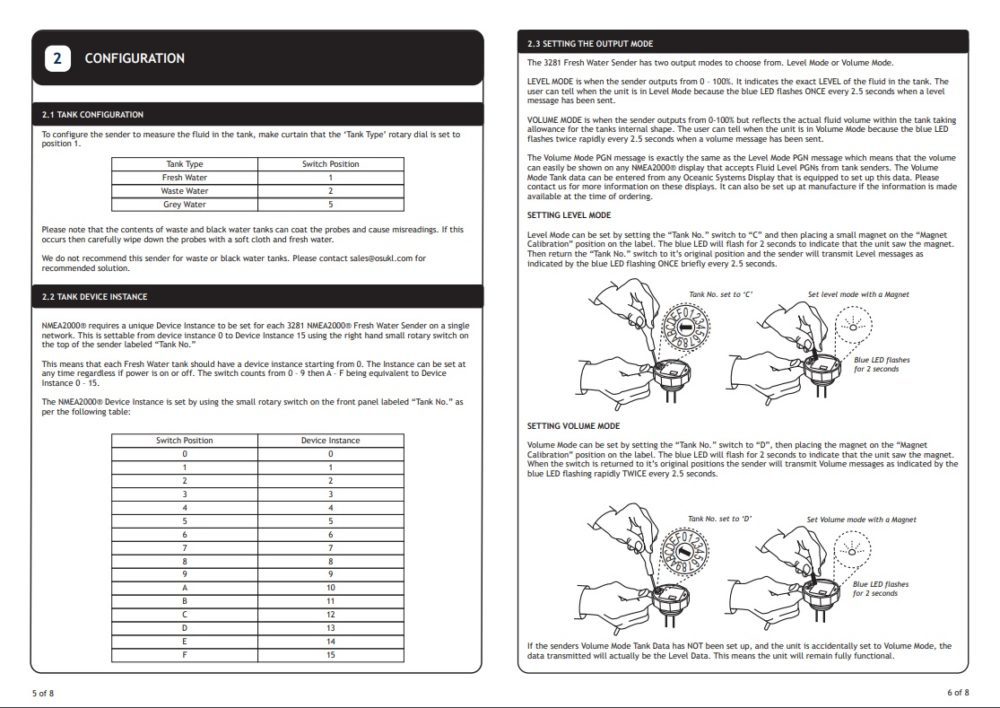

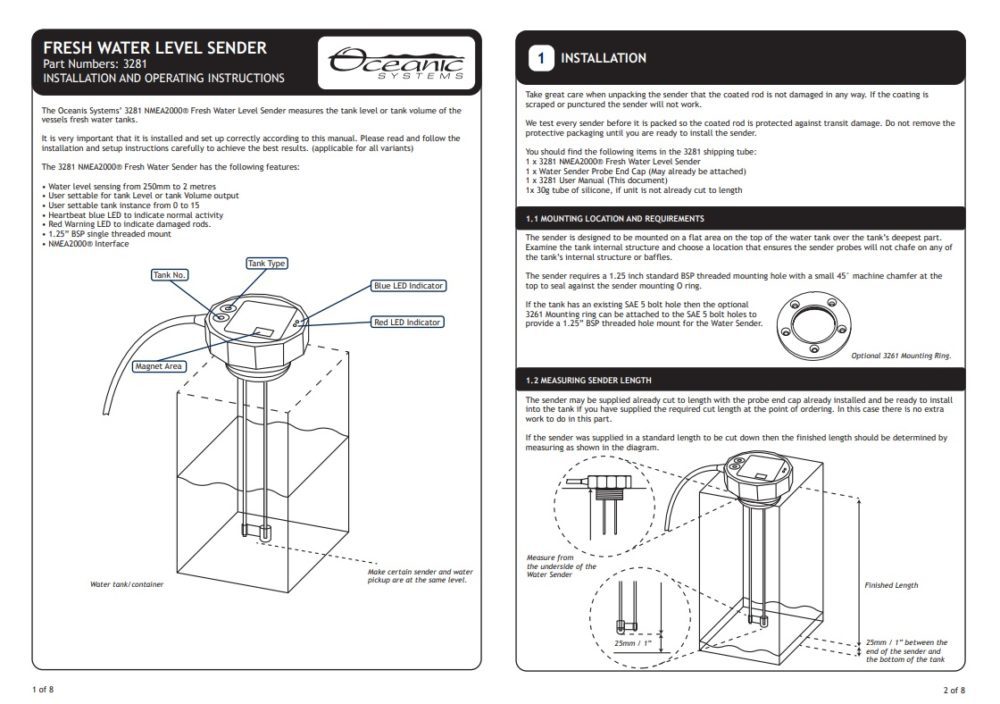

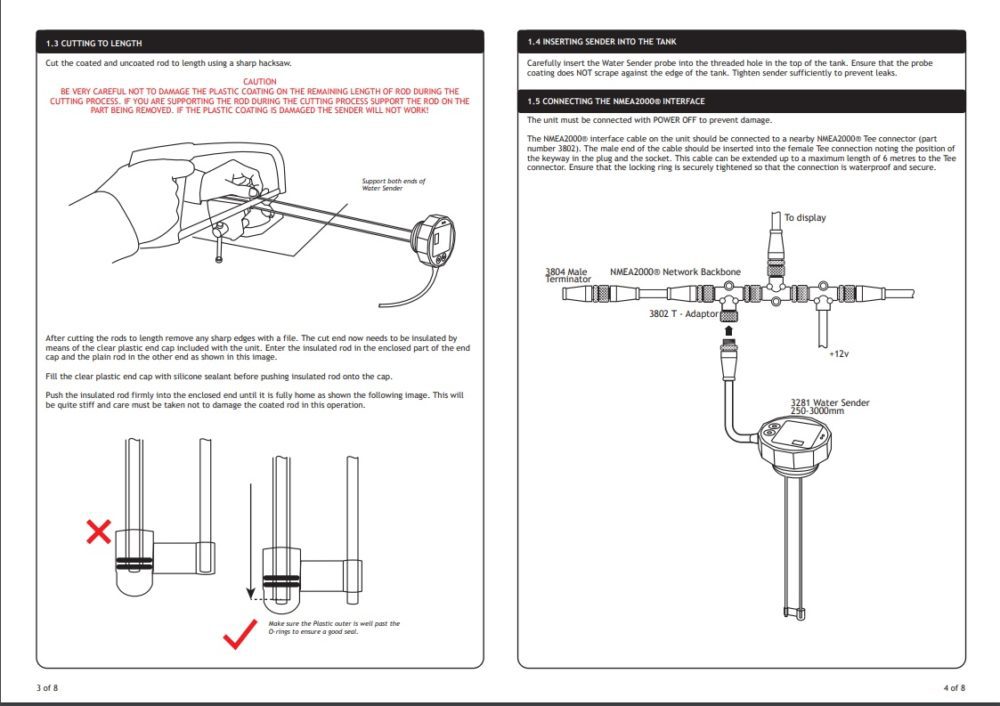

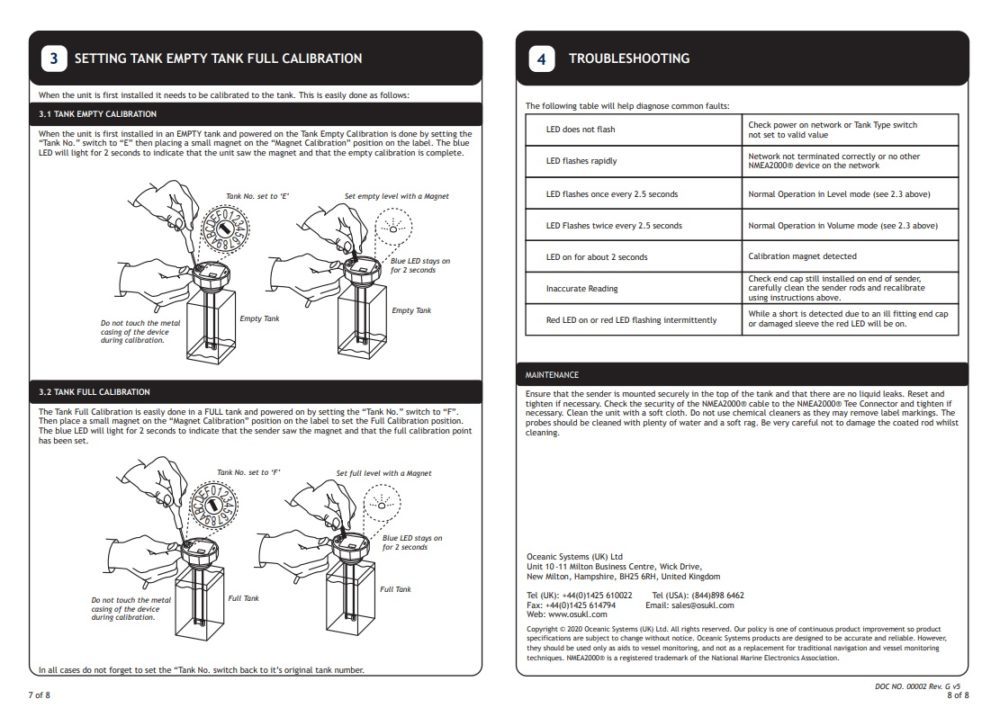

This is designed to be cut to a probe length of 1000-1500mm and as per the instructions attached, comes at a 1500mm length to be cut to length at the time of installation. There is a calibration procedure that needs to be followed upon completion of the installation where you do an “empty” and a “full” calibration. In the unit’s current state, it will output tank “LEVEL” This means that if the level is 10%, 10% is shown, if the level is 90%, 90 percent is shown. Essentially, this will act like a fluid-level sender that outputs directly to the NMEA2000 network.

If you want it to output “VOLUME” as a percentage you will need an Oceanic Systems 3340 color multifunction display to configure. These types of configurations are typically done in very complex and precise installations where the level versus the amount of fluid in the tank is not linear, typically on tapered tanks and tanks that are not “box-shaped.”
