Manufacturer: Tacktick

Model Number: T905

Series: Transducer

MPN: 31-335-2-01

Condition: New

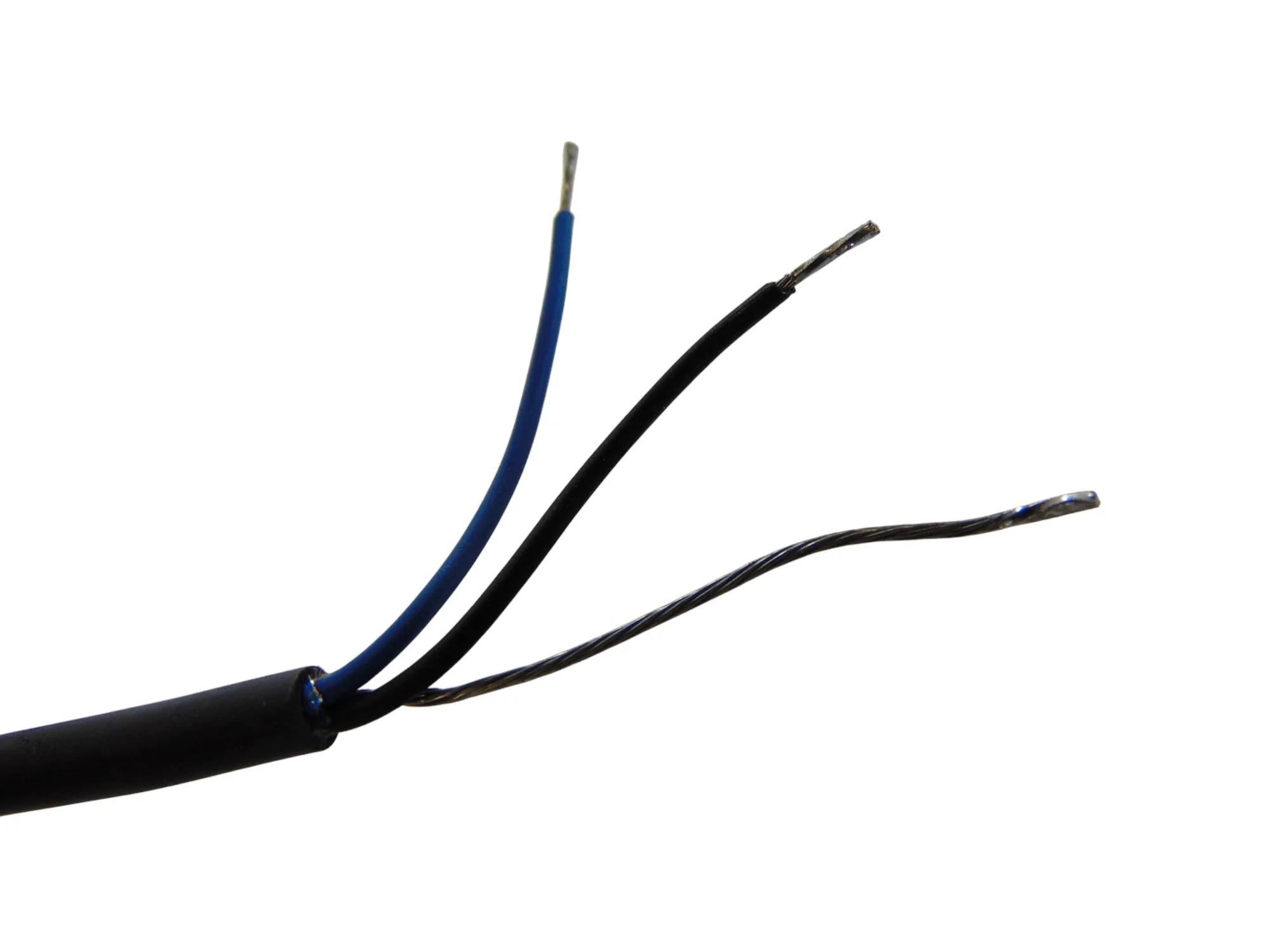

Additional Notes: Simply, this is an Airmar “Shorty” P8 200khz transducer with loose wire ends. Although it carries the Tacktick part number T905 (intended for use with the Wireless Hull Transmitter unit, it can be used on virtually all Raymarine analog depth instruments that use the “fiso” or “spade” connectors. We are including 4 (1 extra in case of a mess-up) spade connectors if you wish to use it this way.

The only major consideration if you are using this with a Raymarine system is the cable length is short, 9 feet. You can certainly splice this into an existing/non-working transducer cable if desired. These include everything needed, contents of the kit are detailed below.

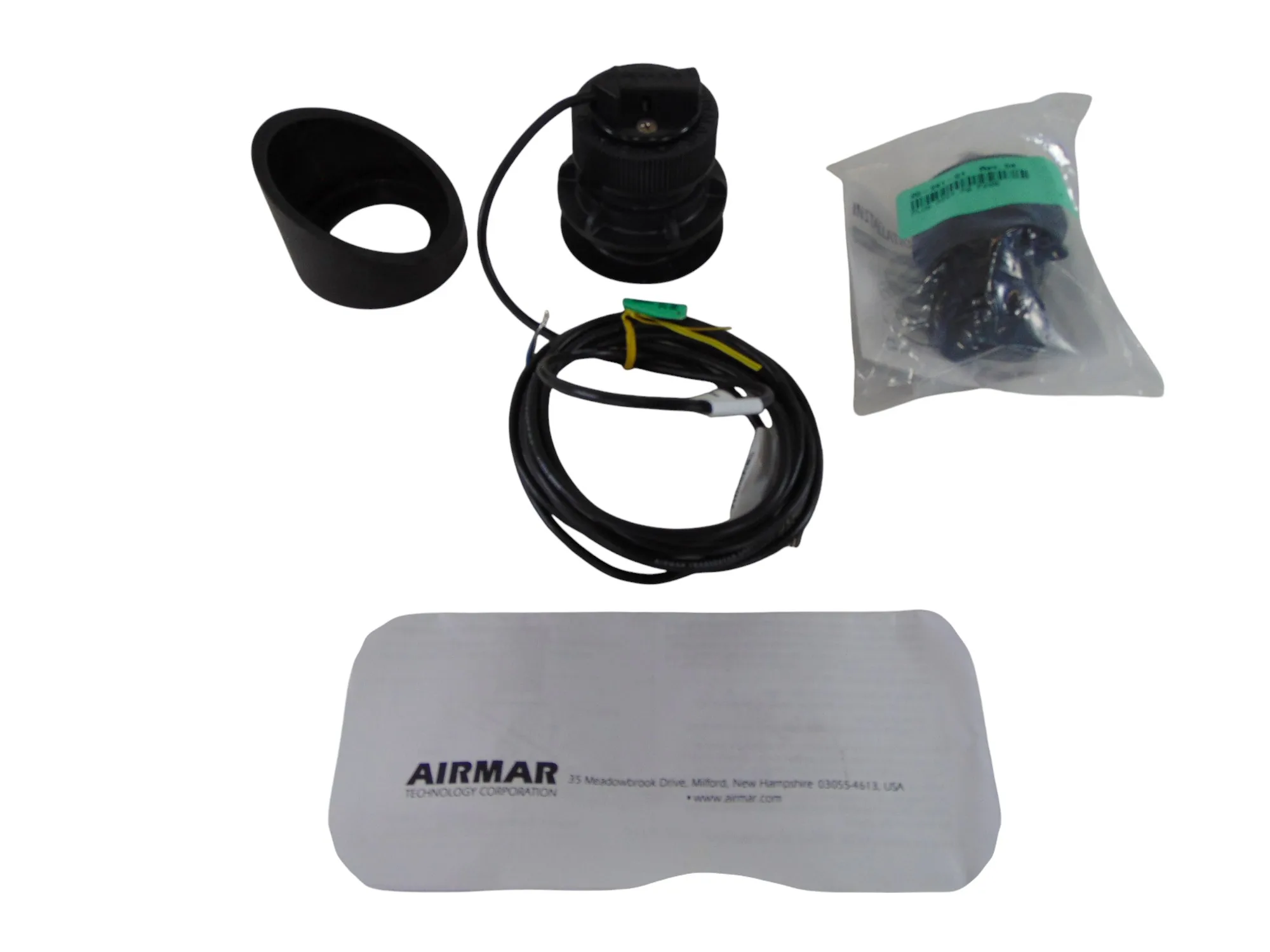

What’s Included:

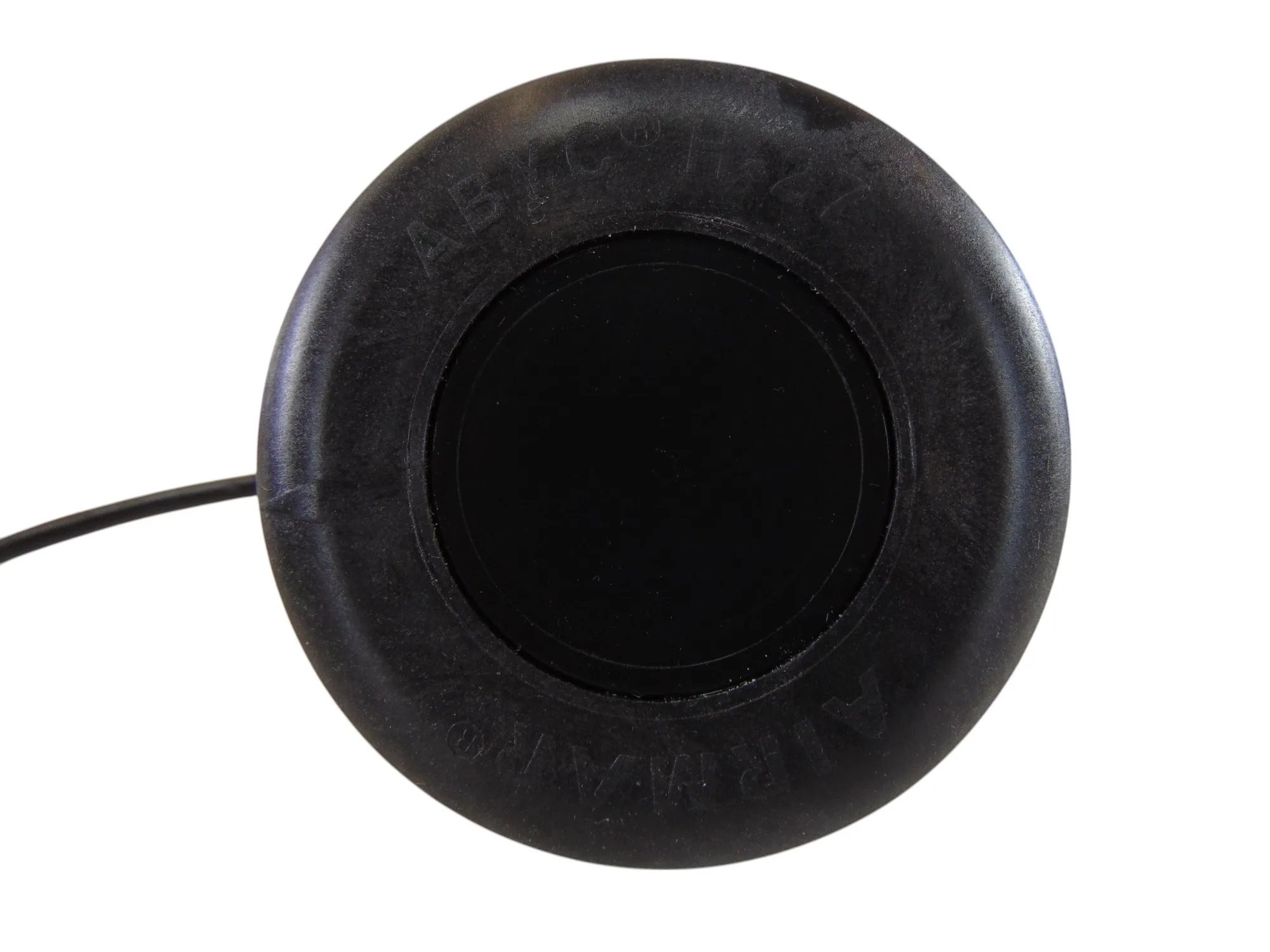

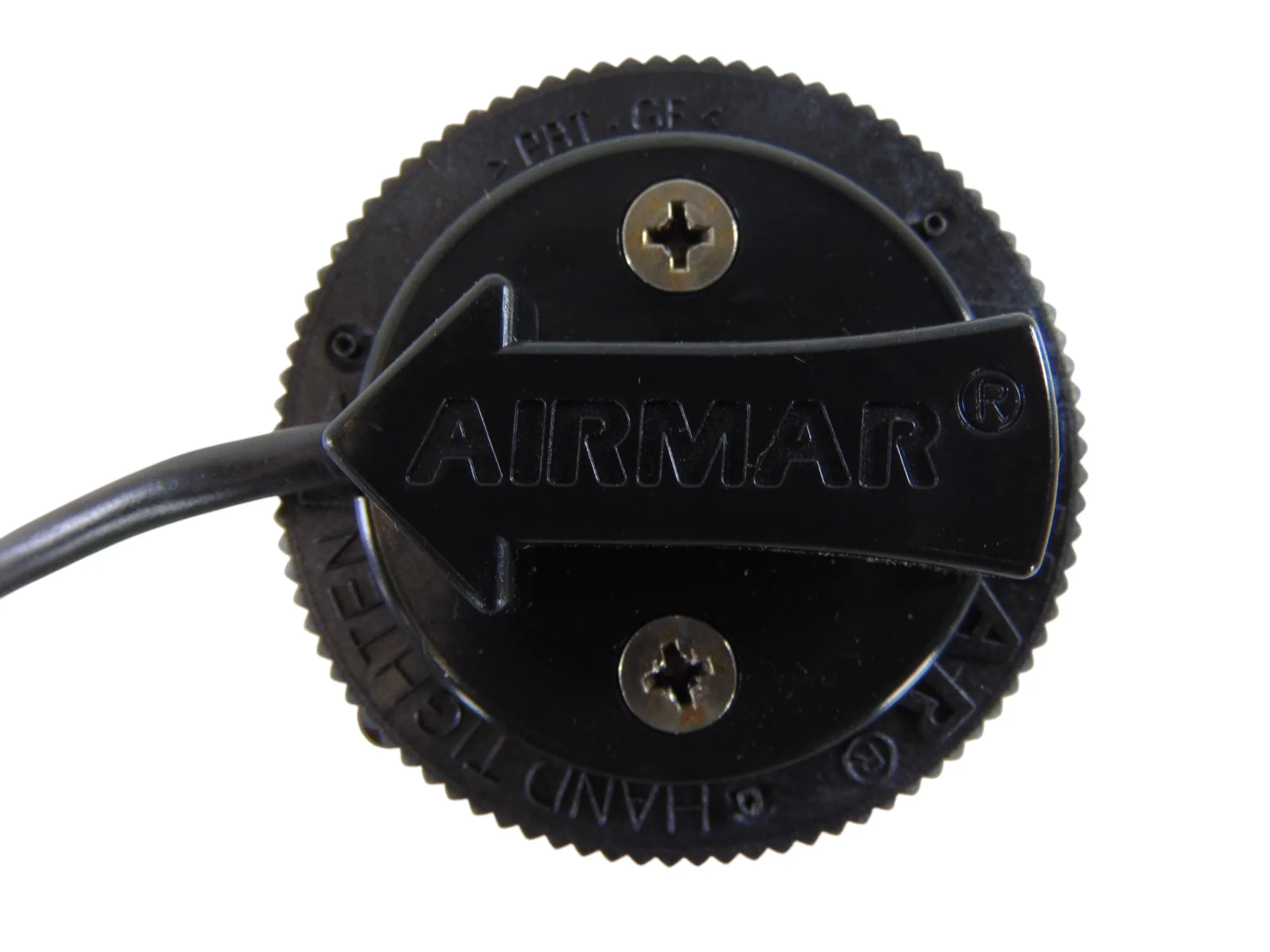

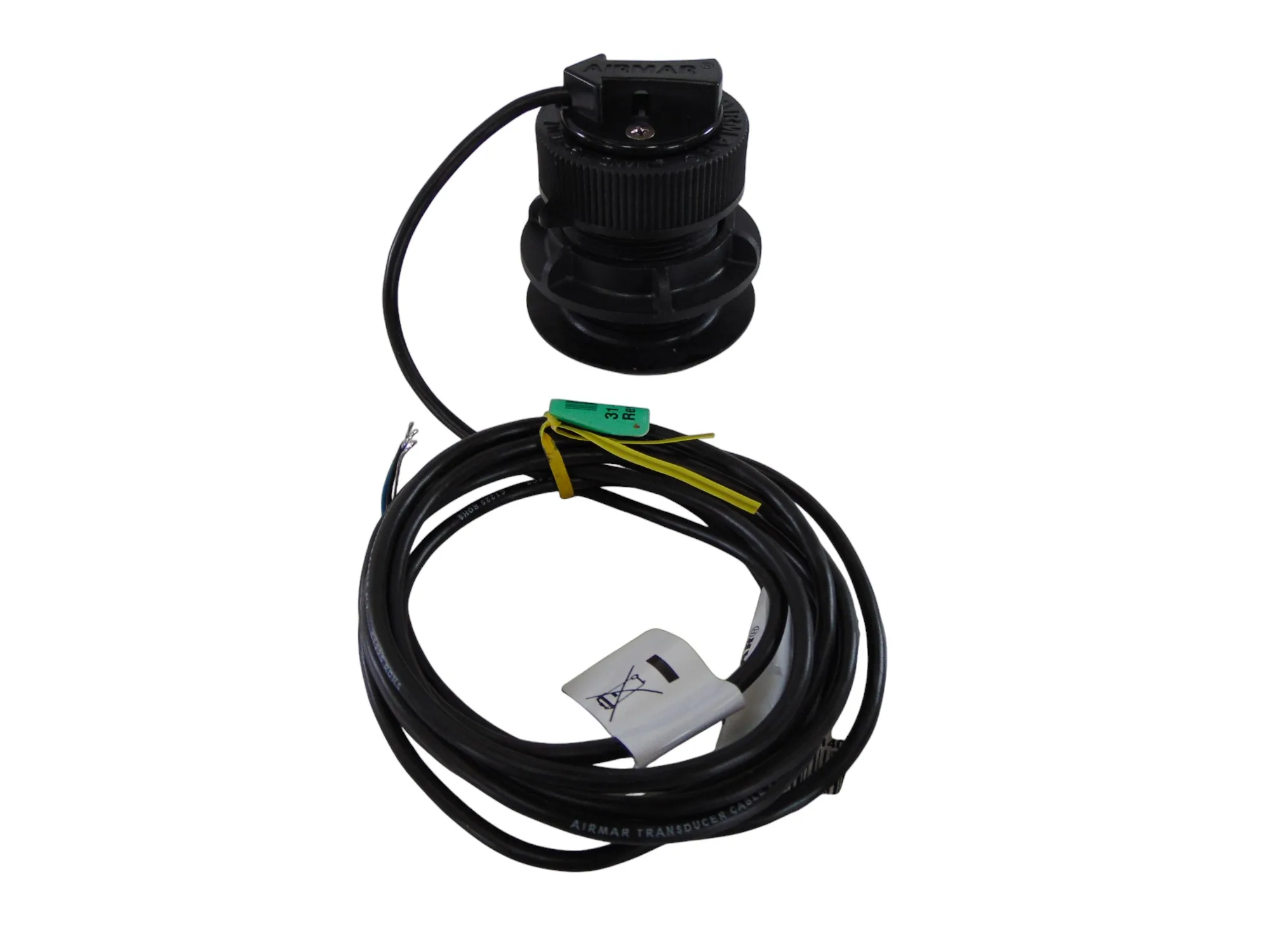

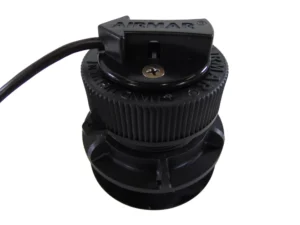

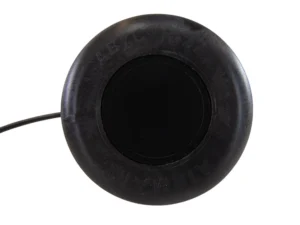

• P8 Shorty Depth Insert w/9′ Attached Cable

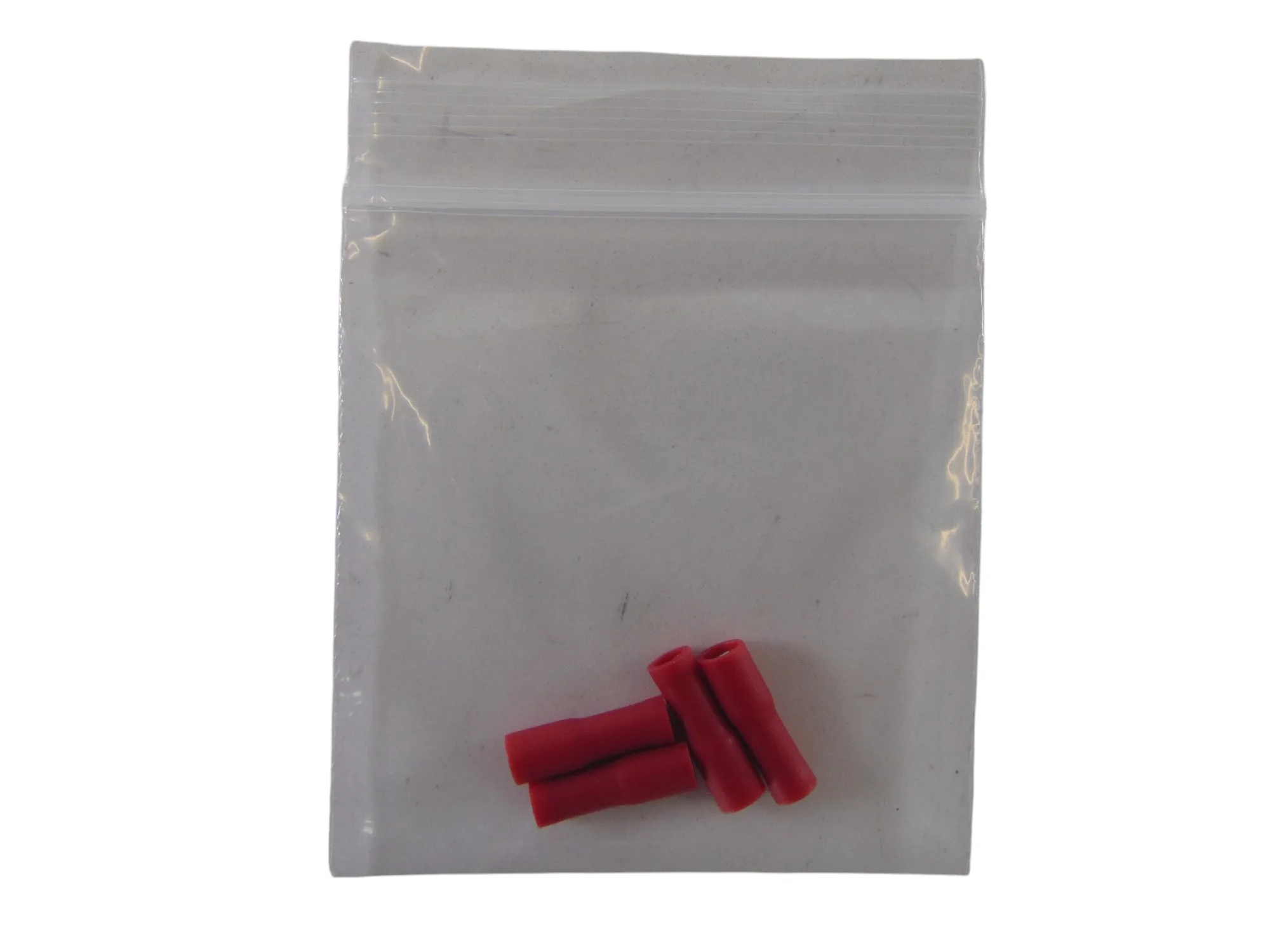

• (4) Spade Connectors for Use w/Raymarine Products
• P8 Transducer Housing Kit – Plastic

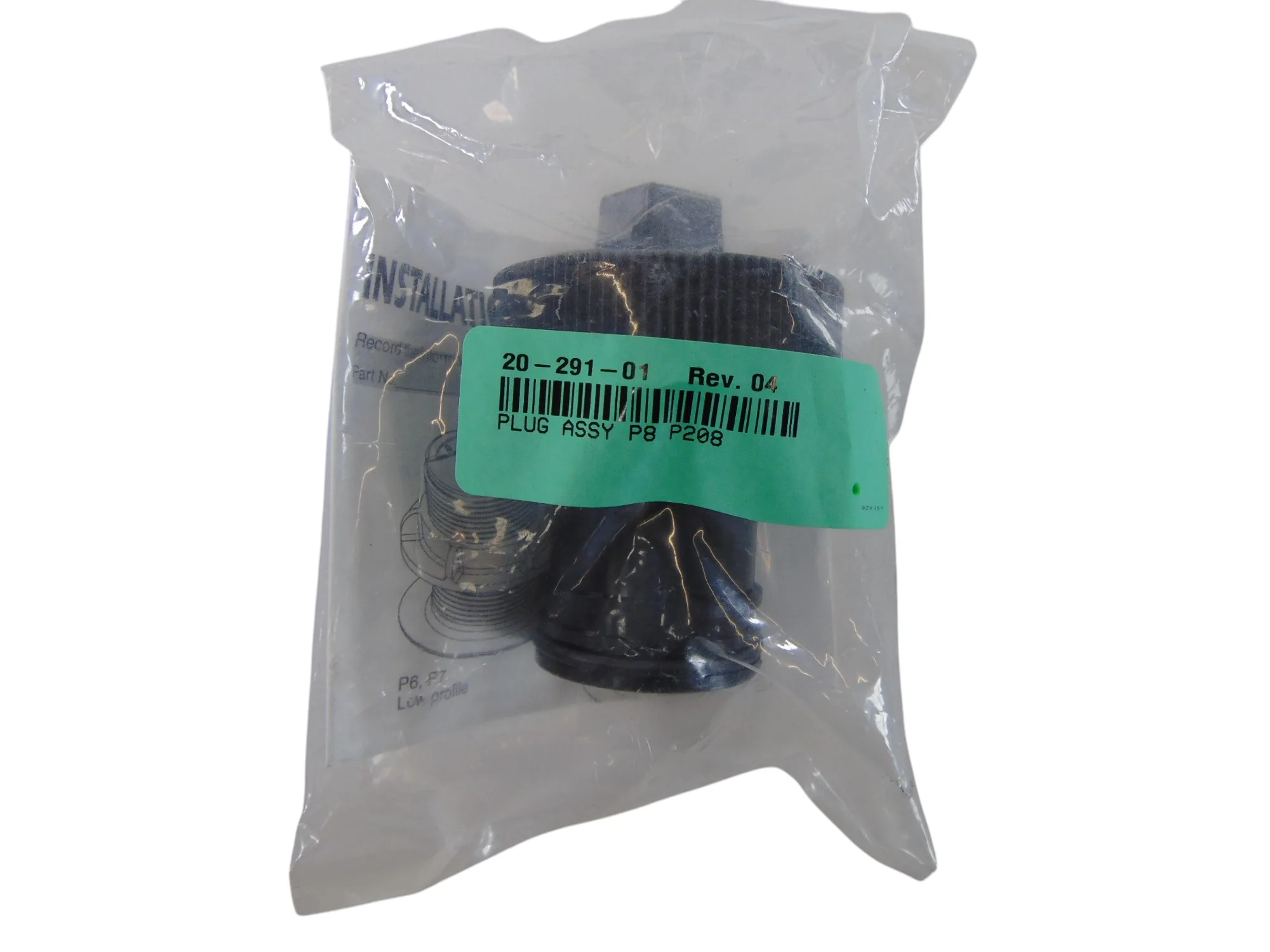

• P8 Blanking Plug Assembly
• Mounting Instructions

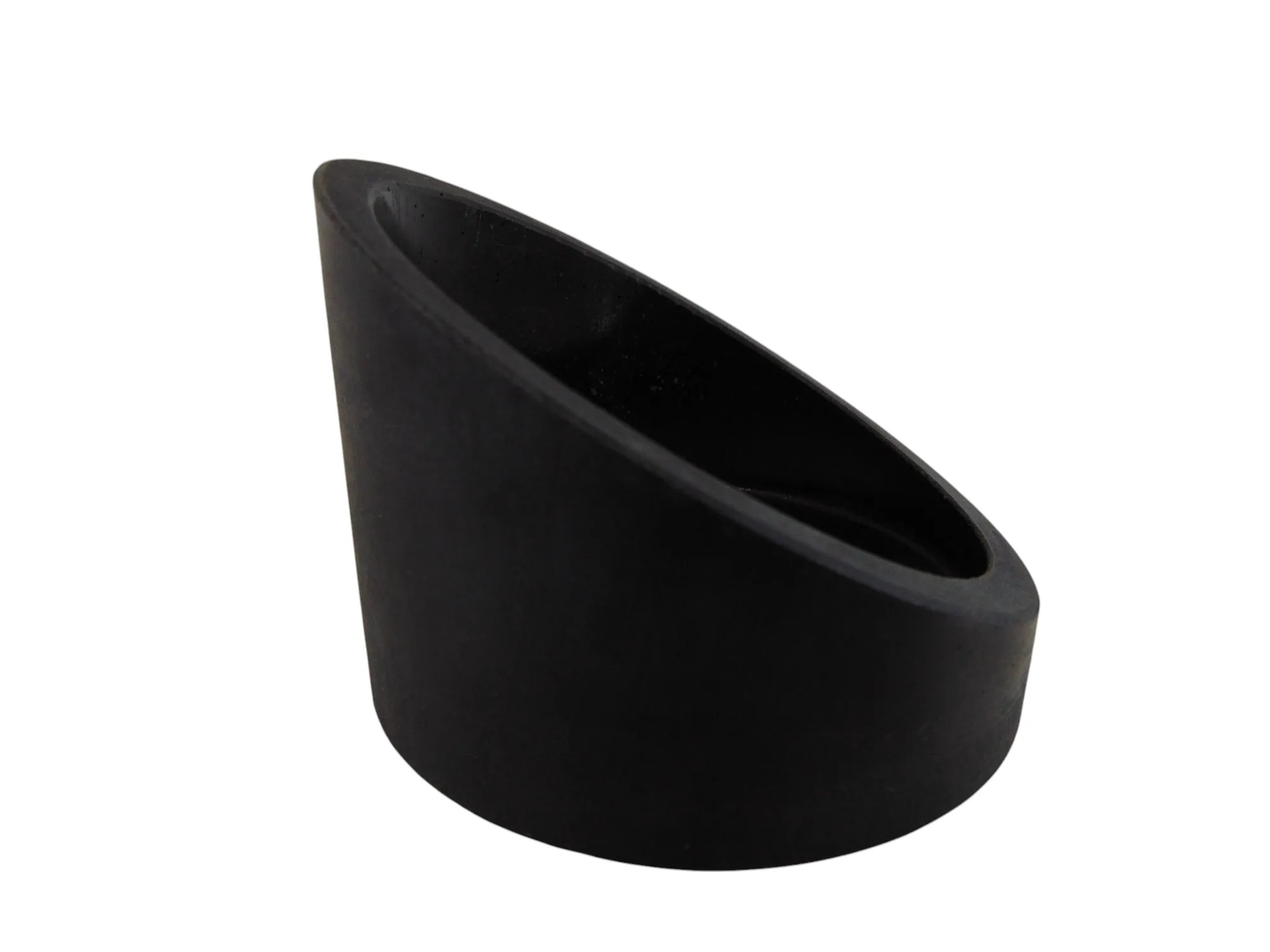

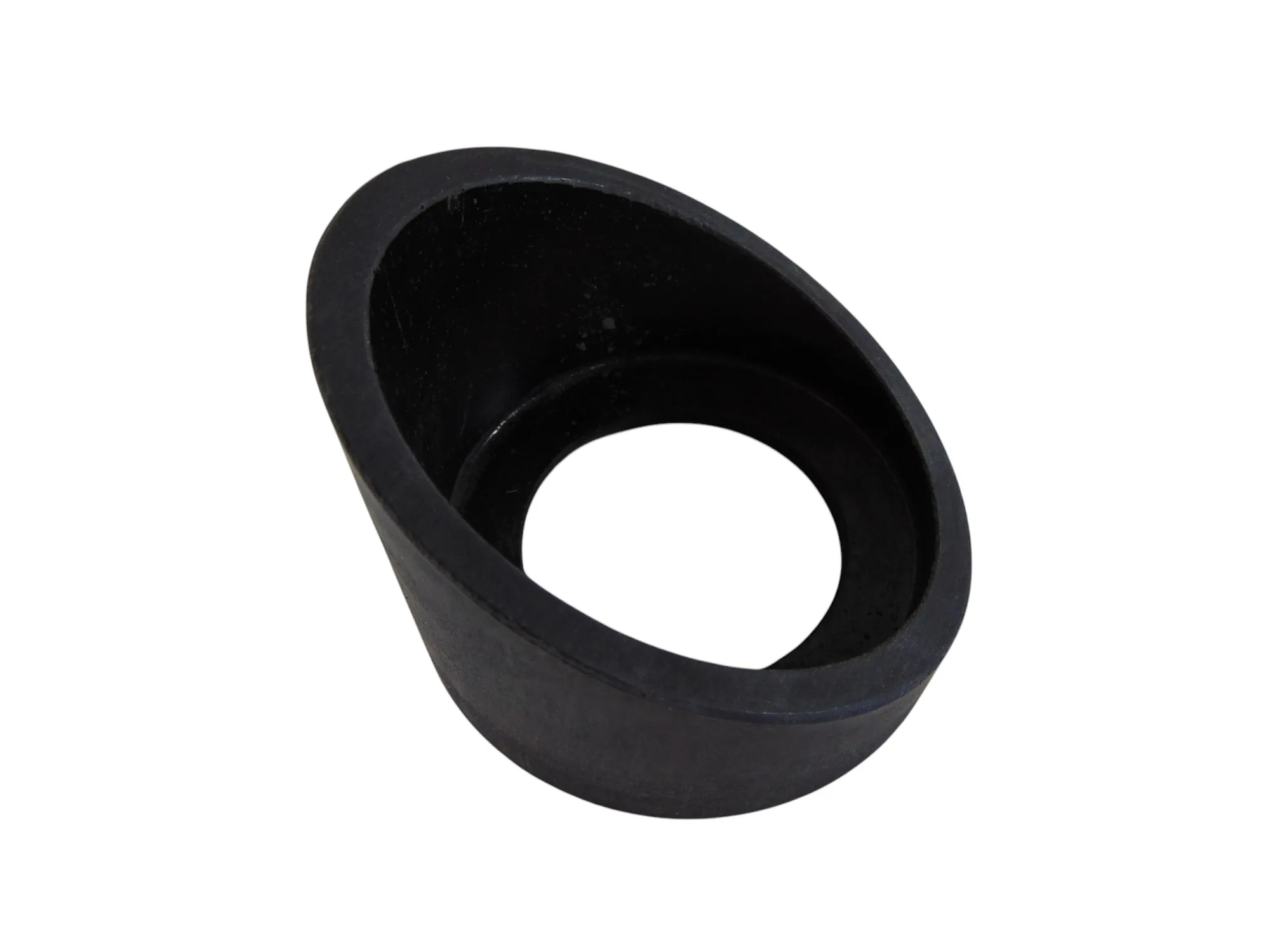

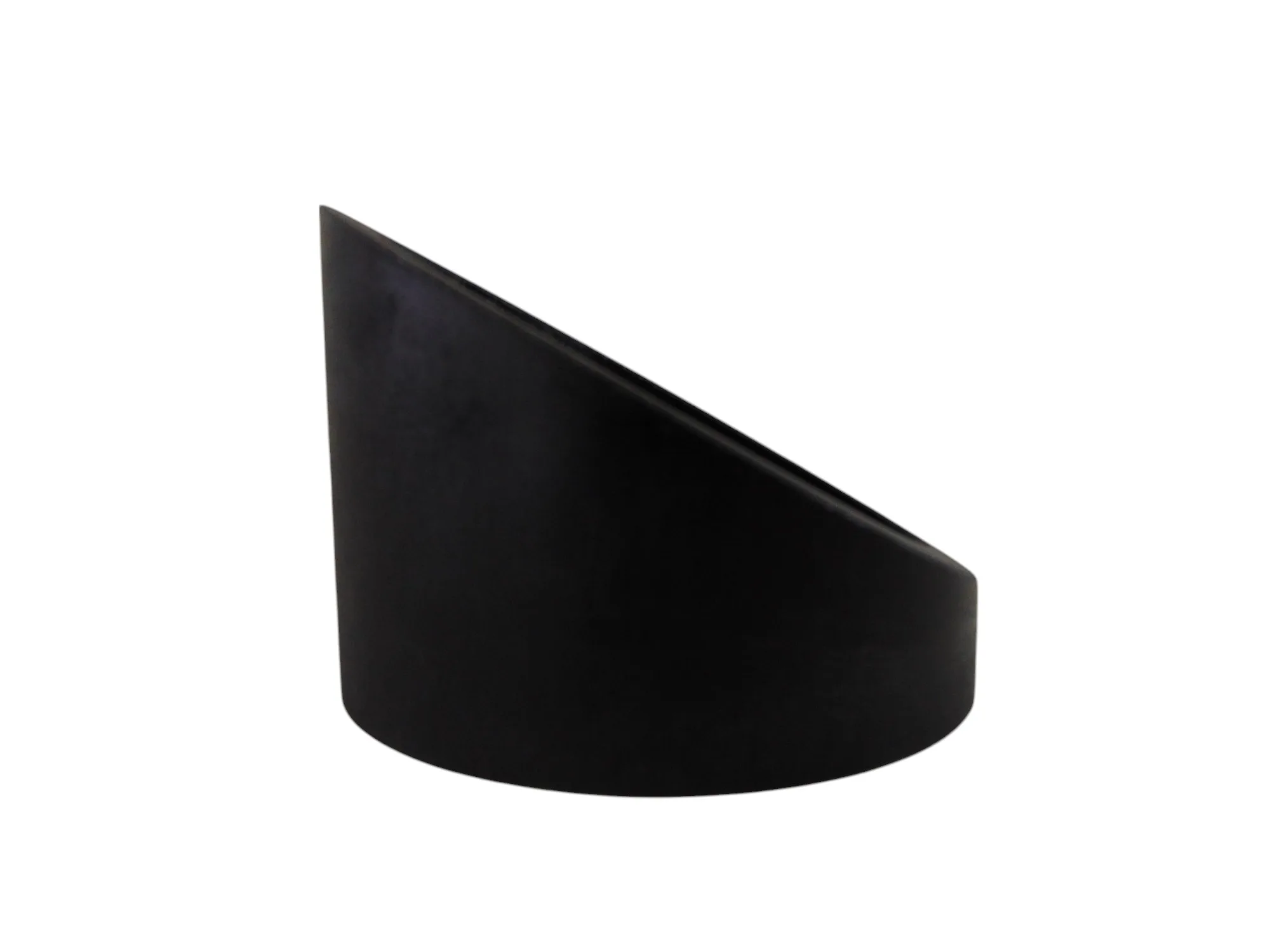

• Thru-Hull to In-Hull Adapter w/Instructions

Compatible Parts: Tacktick systems & Raymarine ST-30, 40, 60, ITC-5 and Raymarine depth pods for ST70 and ST290 systems

Dimensions (L x W x H): 10 x 6 x 5 in, Weight: 2.5 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
