Manufacturer: Wilson Electronics

Model Number: 301130

MPN: 301130

Condition: New

Additional Notes: We are not a Wilson dealer, this has a 90 day warranty from Max Marine Electronics but no manufacturer’s warranty.

Antenna Specifications
Part Number 301130

Frequency Range 700-800 MHz / 824-894 MHz / 880-960 MHz /
1710-1880 MHz / 1850-1990 MHz

Impedance 50 ohms

Antenna Gain 3.4 dBi 700-800 MHz / 4.1 dBi 824-894 MHz / 3.5 dBi 880-960 MHz /
3.1 dBi 1710-1880 MHz / 5.1 dBi 1850-1990 MHz

Radiation Omni

Polarization Vertical

Ground Plane Built-in Ground Plane

Connector FME Female

Material Whip – Stainless Steel / Casing – Fiberglass

Coax Cable RG58 – 7 inches

Height 21 inches / 53.3 cm

Mount Standard 1-inch x 14 thread

What’s Included:

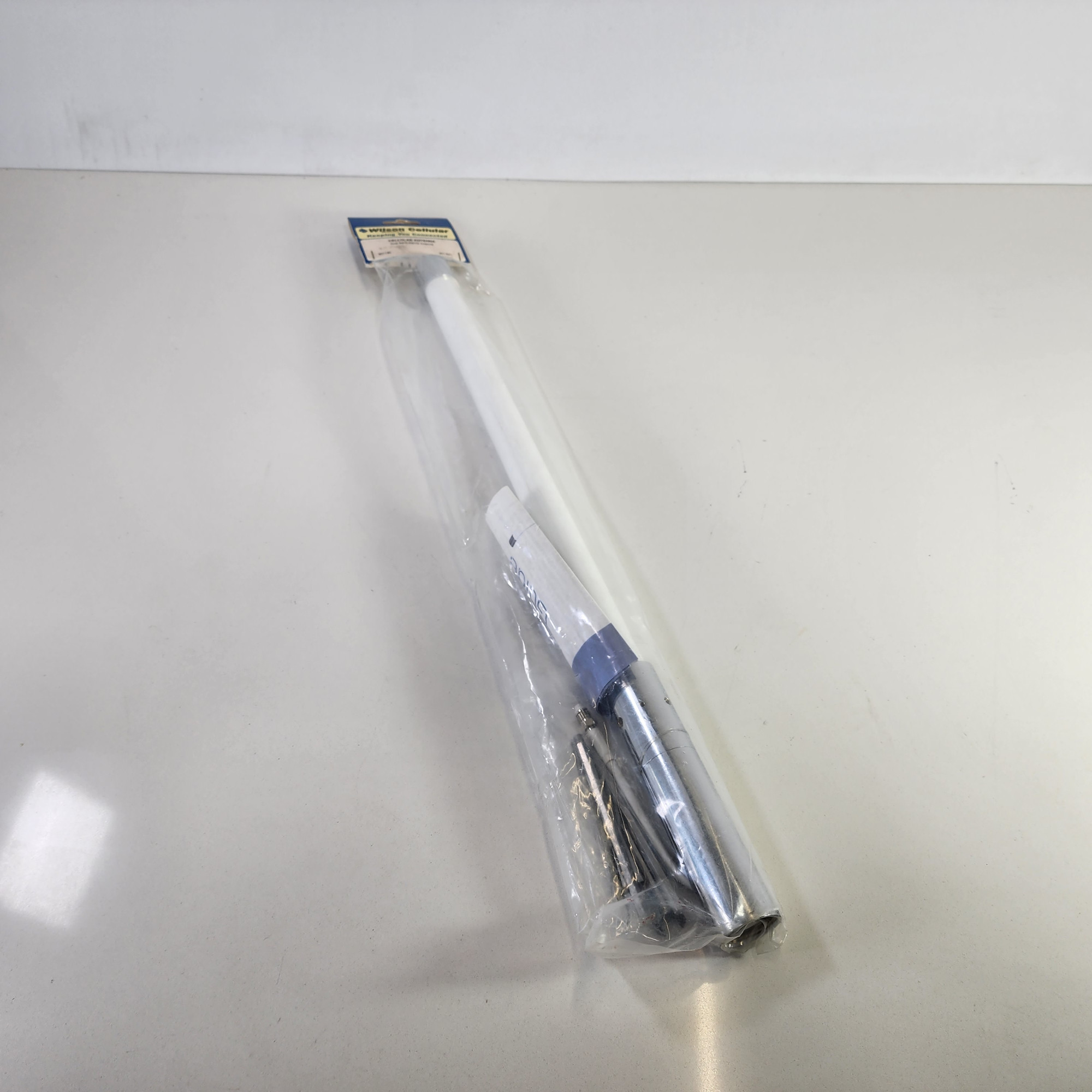

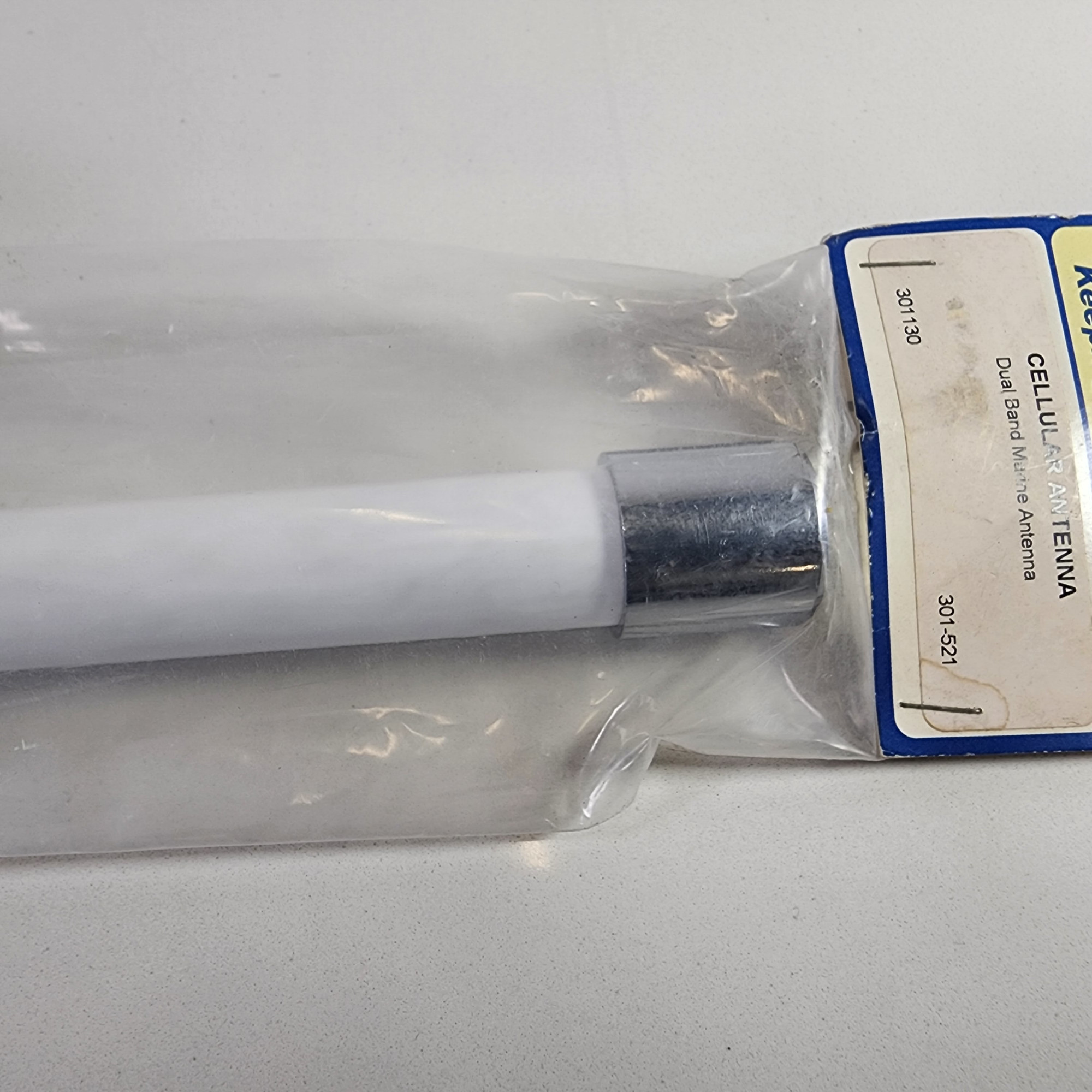

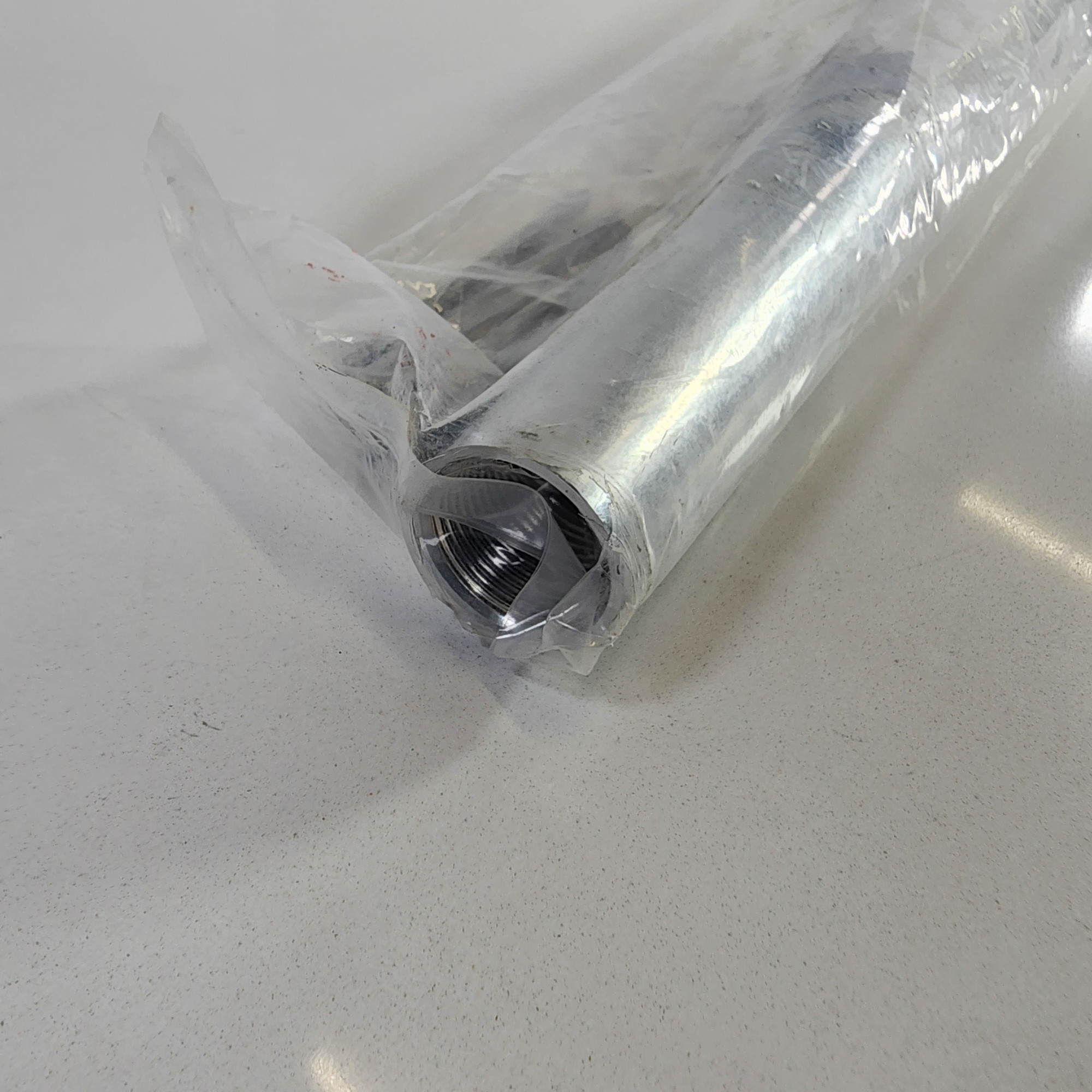

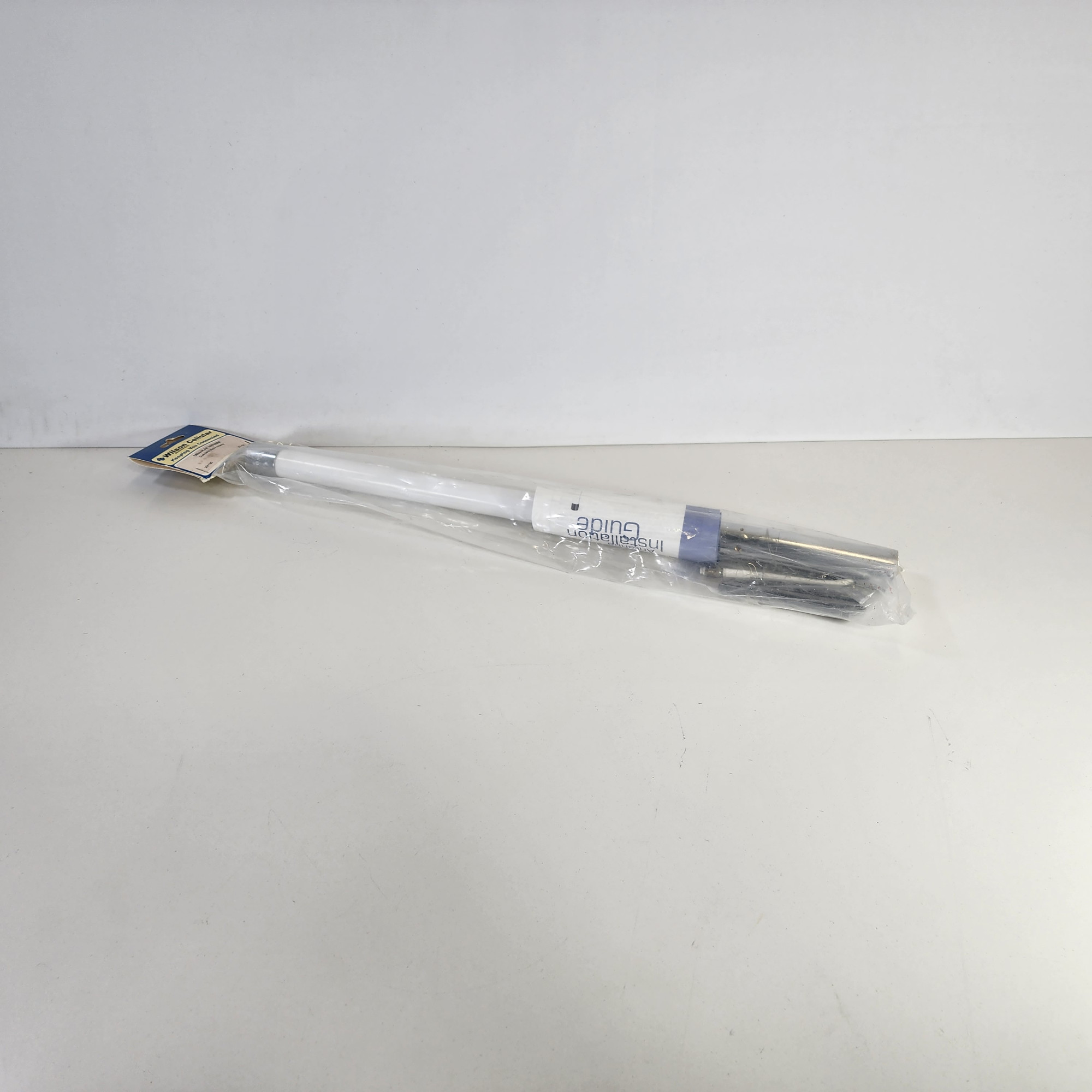

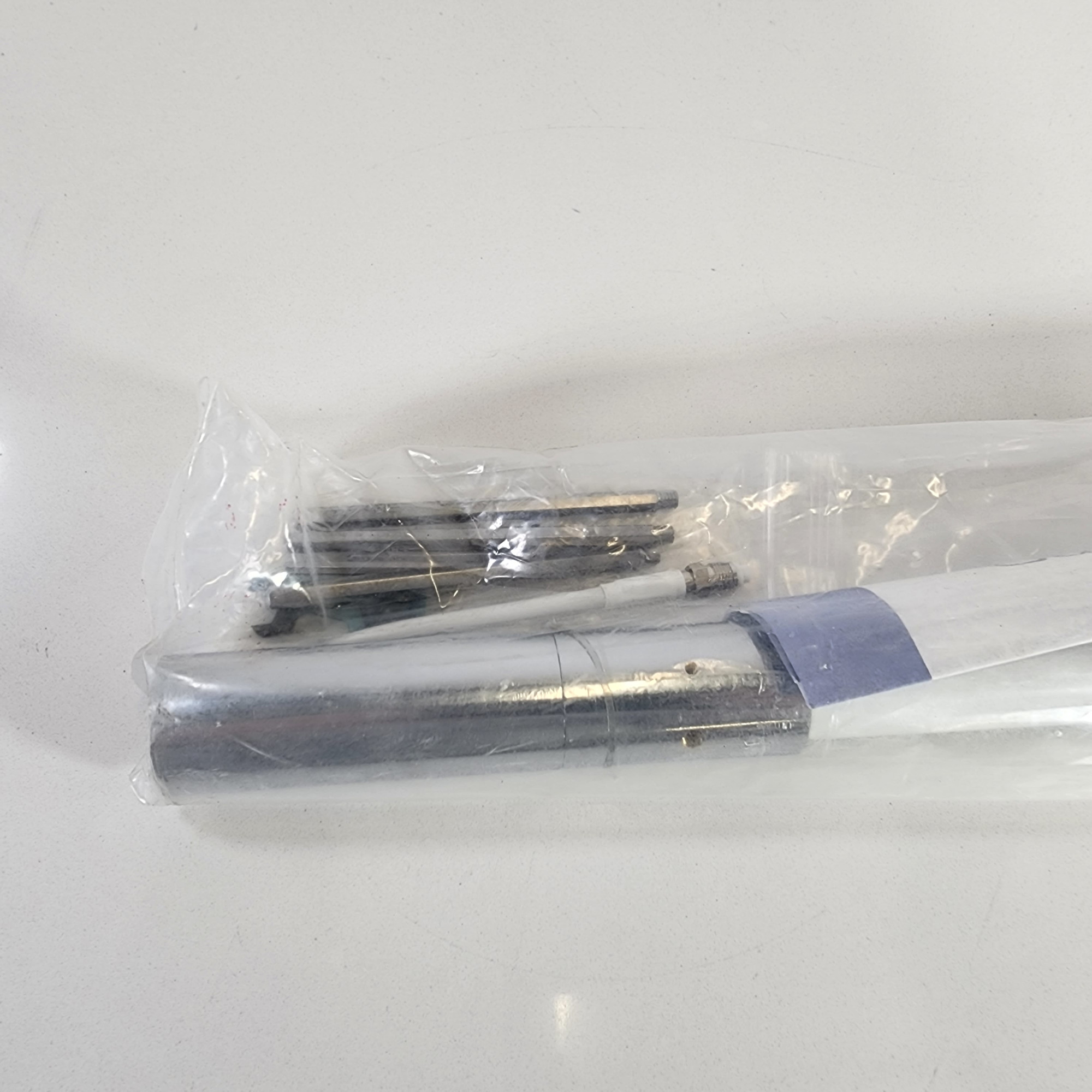

• Wilson Electronics 301130 Dual Band Omnidirectional Marine Antenna

Dimensions (L x W x H): 1.5 x 3.5 x 24 in, Weight: 1.5 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
